STICK LIGHTS / FUSION SERIES

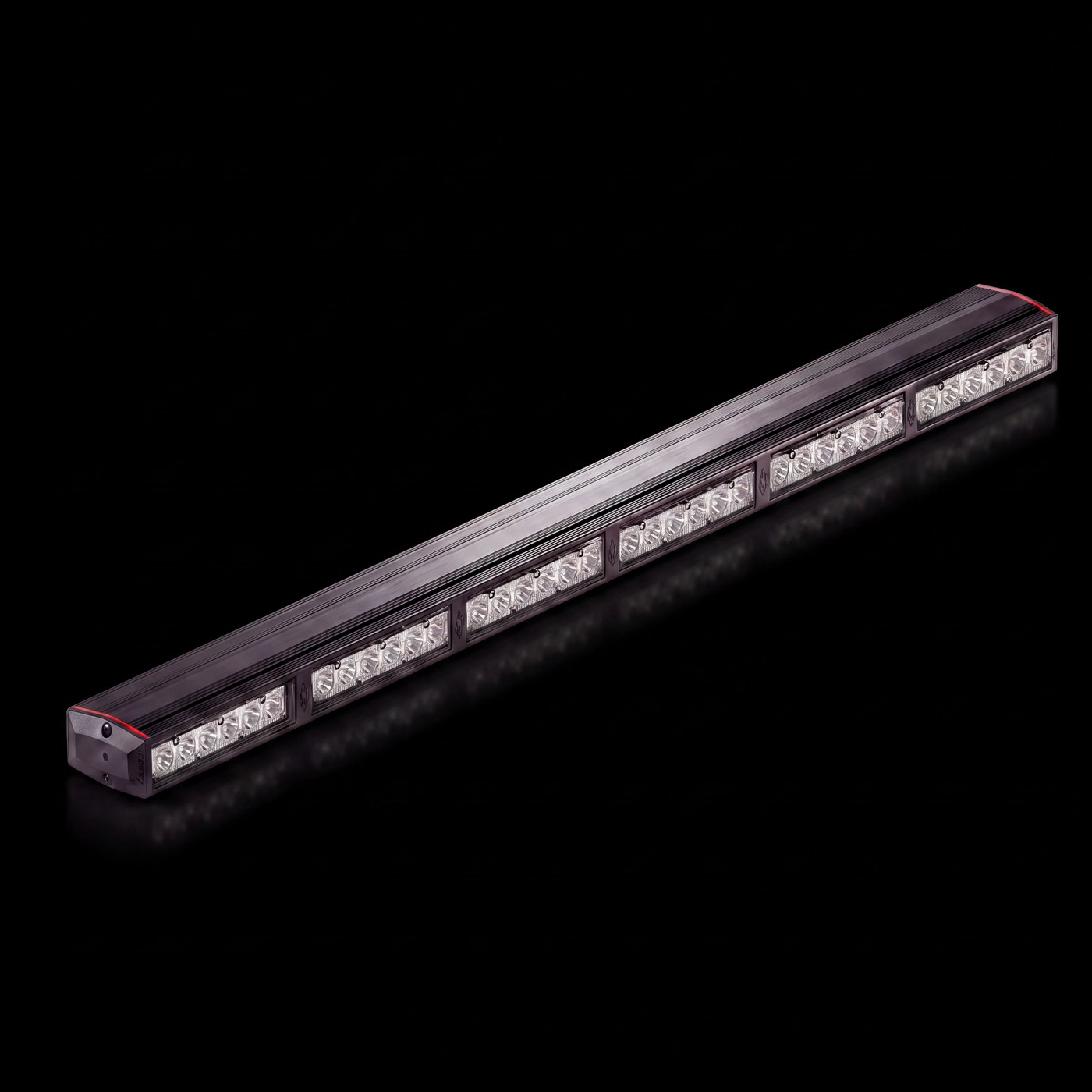

FUSION 600

Name: Fusion 600
Brand: Feniex
SKU: FS-0616
Price: 369.00 USD
Availability: InStock

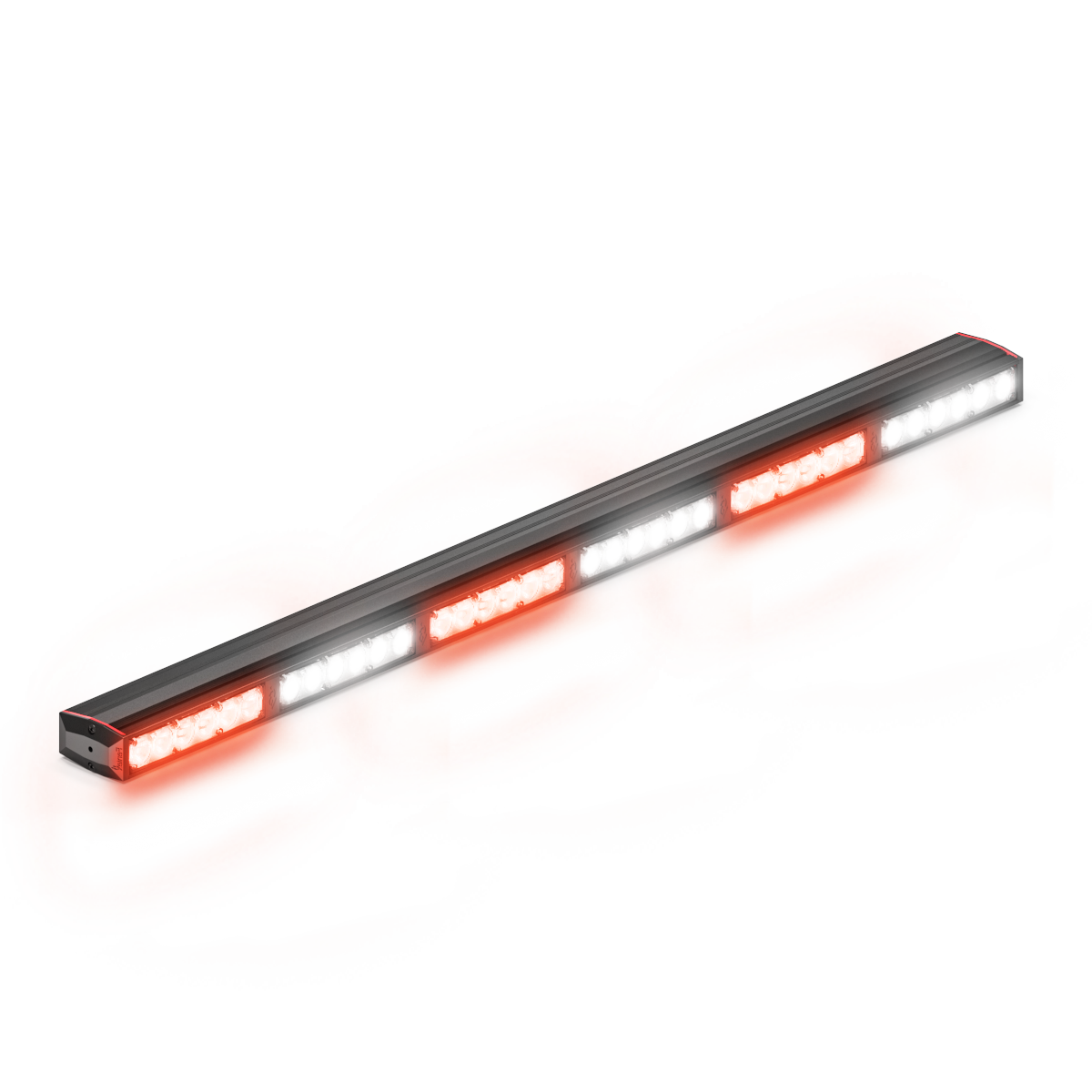

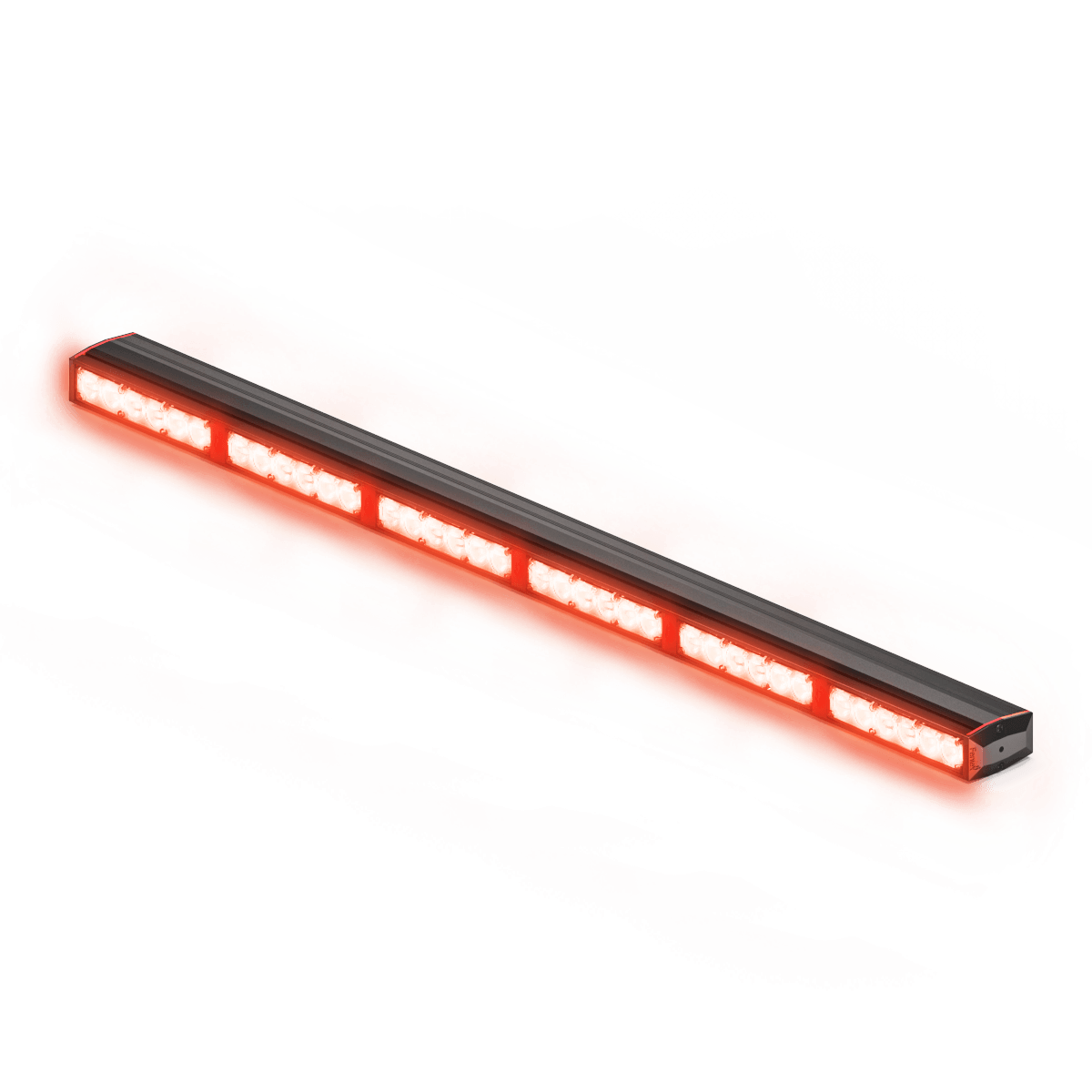

FS-0616 · Stick light · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 6 modules

No build yet — every module is waiting for a color.

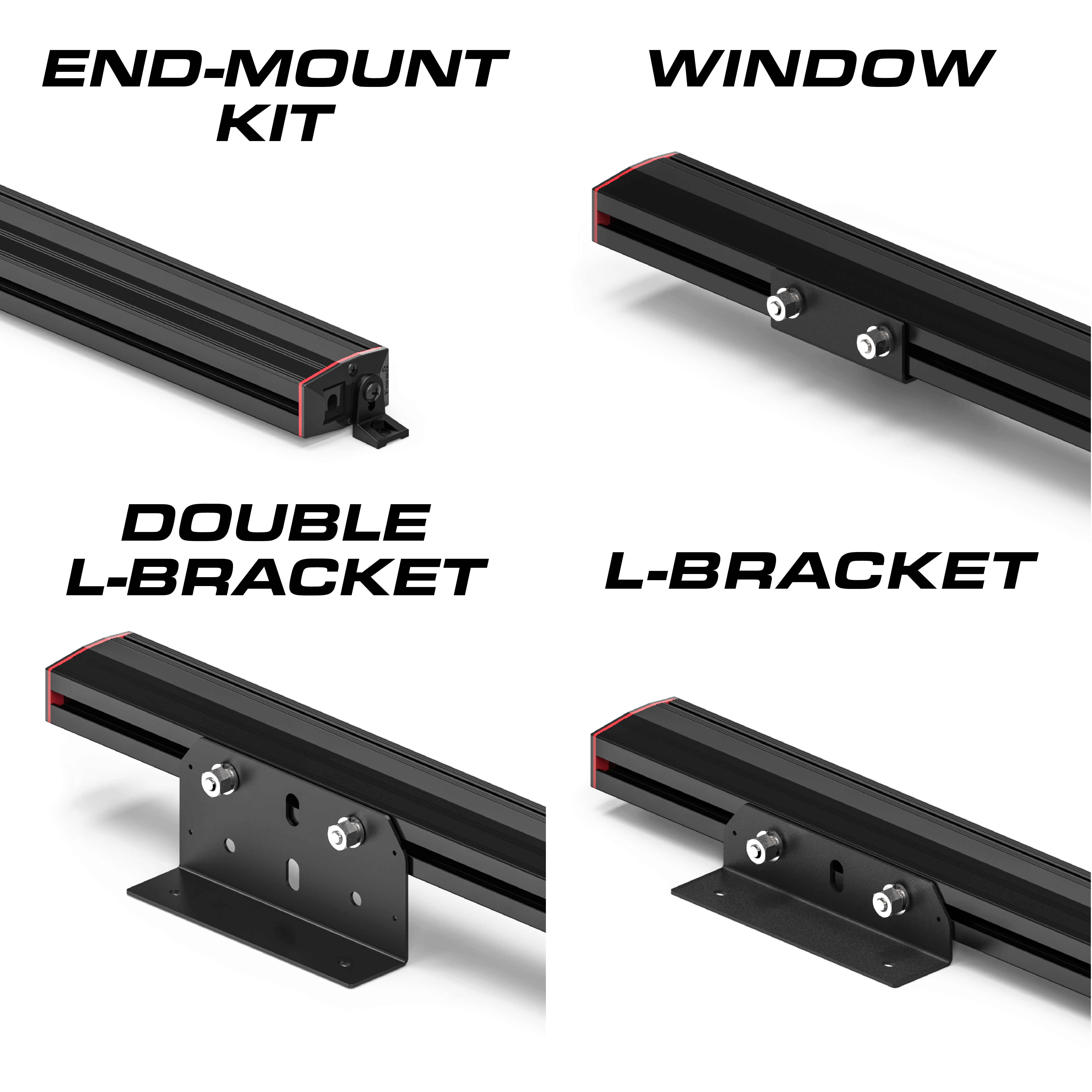

STEP 02Bracket

Select Bracket

STEP 03Cable length

$369 1

$19 Flat Rate
Shipping

Pattern Studio

FUSION 600 · IN THE COLORS YOU BUILD

Your build

No build yet — nothing to play.

build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

36 LEDs · 6 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.

15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.

28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.

Takedown · alley · floodWork lighting built in — assigned per module in your build.

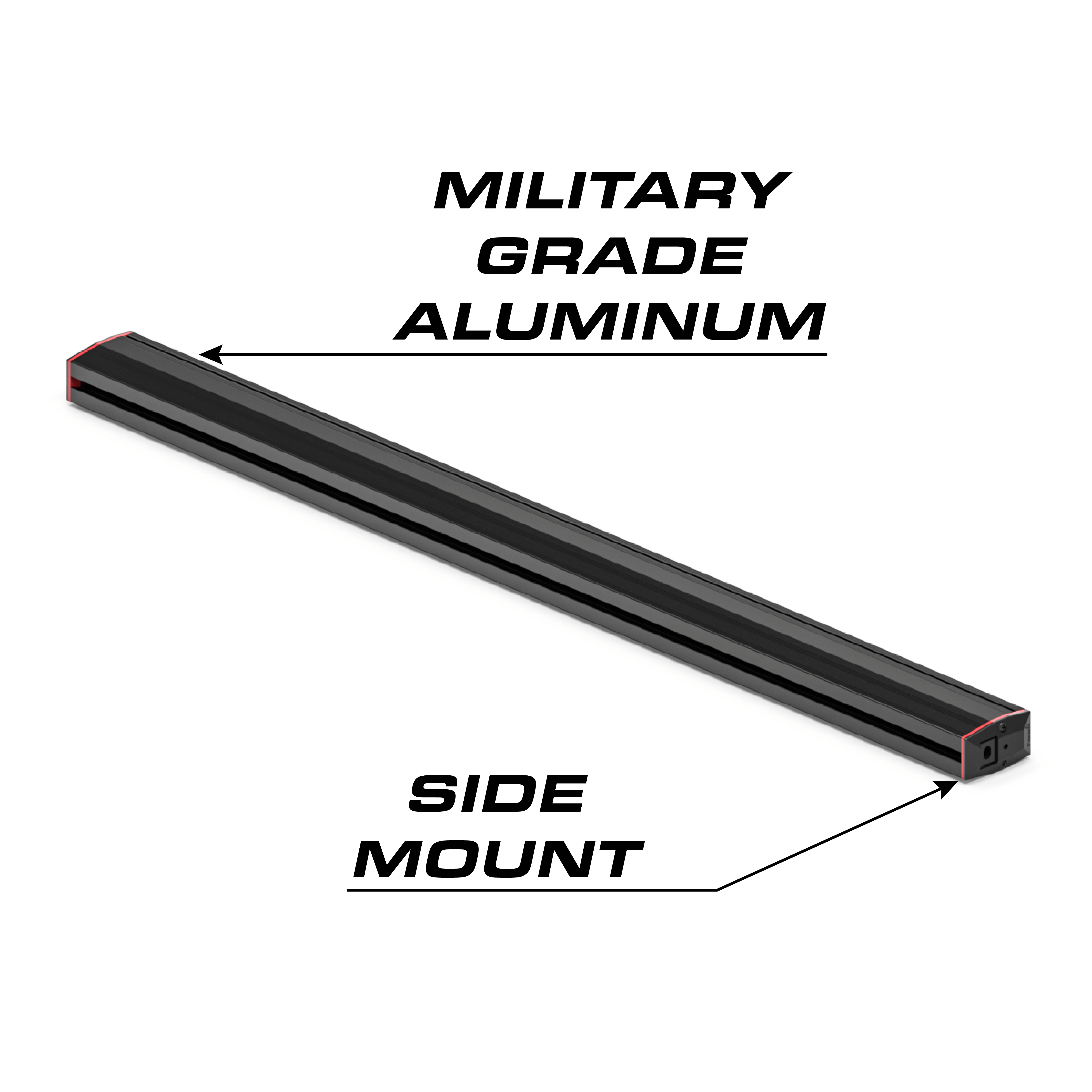

Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count	36 LEDs
Light modules	6 modules · single-color, user configured
Current draw	5 A
Input voltage	10–18 V DC
Optical spread	40°
Dimensions	28.1″ L × 2.25″ W × 1.3″ H
Cable	10 ft standard · 14-pin · 20 AWG
External fuse	125% of product load
Warranty	5-year manufacturer
Origin	Made in the USA

SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66

About the series

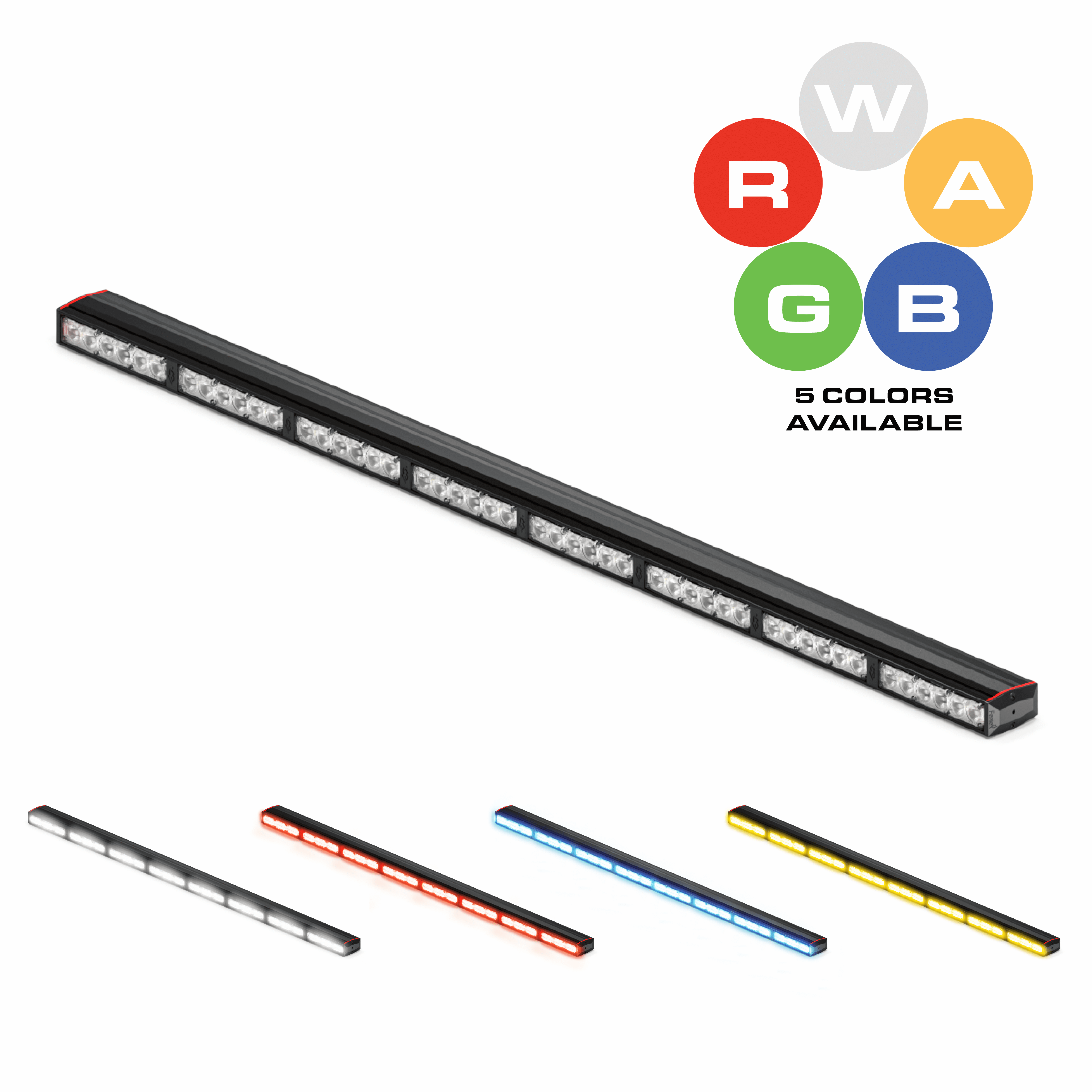

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses

5 Star Reviews

thousands of 5-star reviews

Solid Construction / LOUD

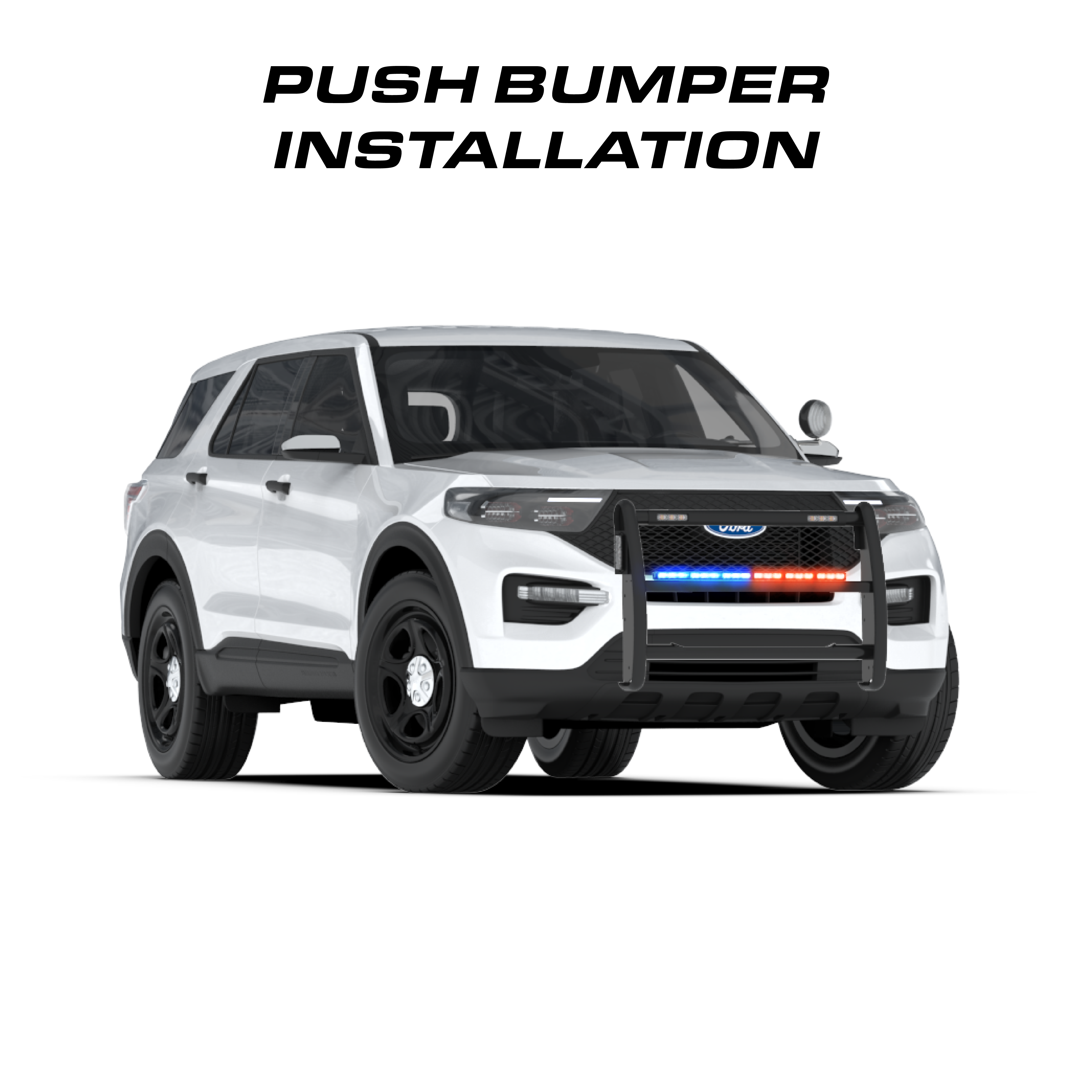

Solid construction, just like every other Feniex product! Looks great on my F-250's push bumper. LOUD!
