Q® Series 1X
Price: $0.00
About the Product/Series
Introducing the Feniex Q® Series, the first 5-color perimeter lighting series. Each Q Series product is capable of any combination of Blue, Red, Amber, White, and Green, empowering you to command attention and enhance safety in any situation. Q Series products can be purchased as either 3-Mode or Serial Technology so you can choose the functionality that is best for your vehicle.
(3-Mode) Feniex Q® 1X Dash is built with a state-of-the-art Q smart module and a built-in auxiliary outlet controller. Hardwire installation is compatible with any 12v switch or controller and syncs with all Feniex smart modules using 3-Mode technology.

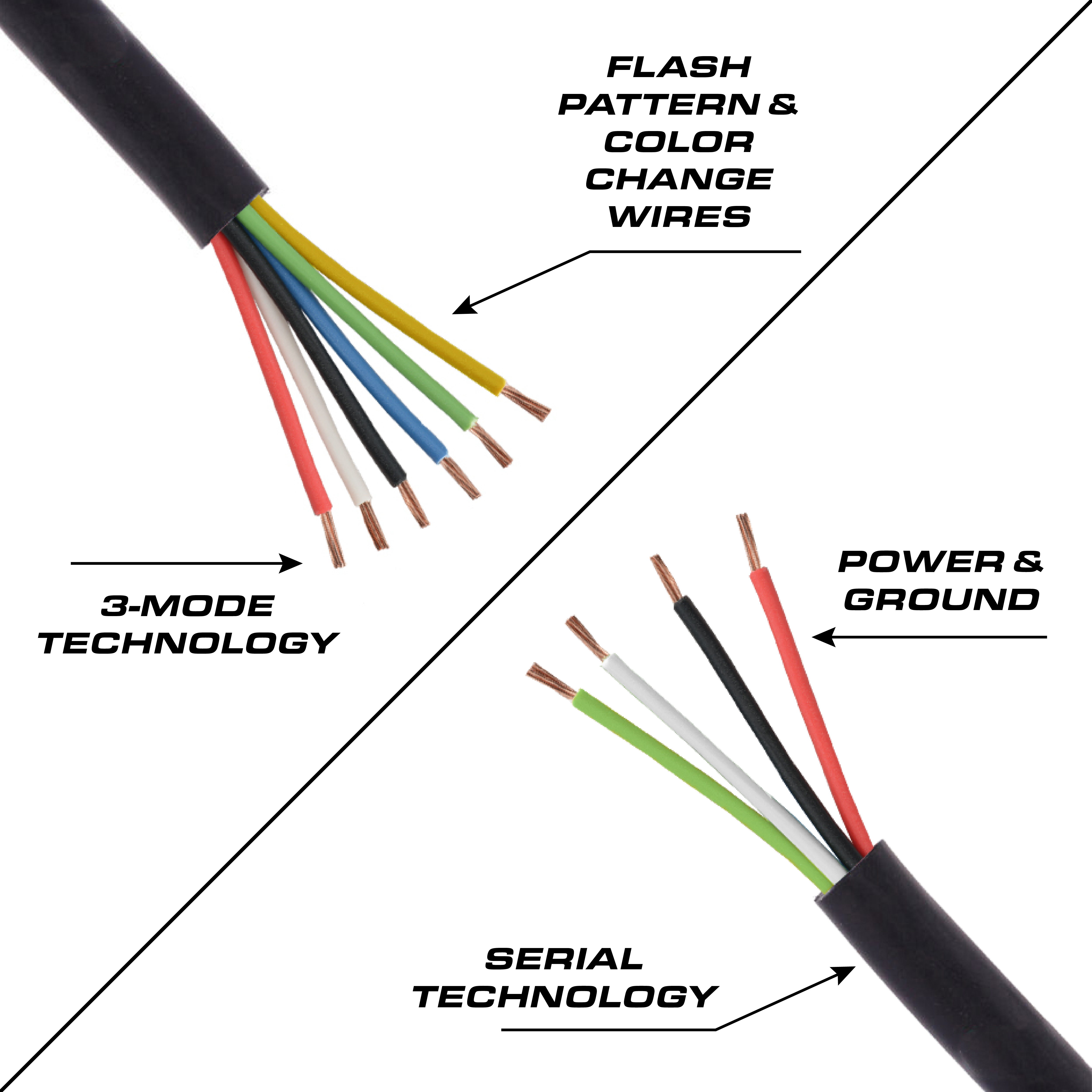

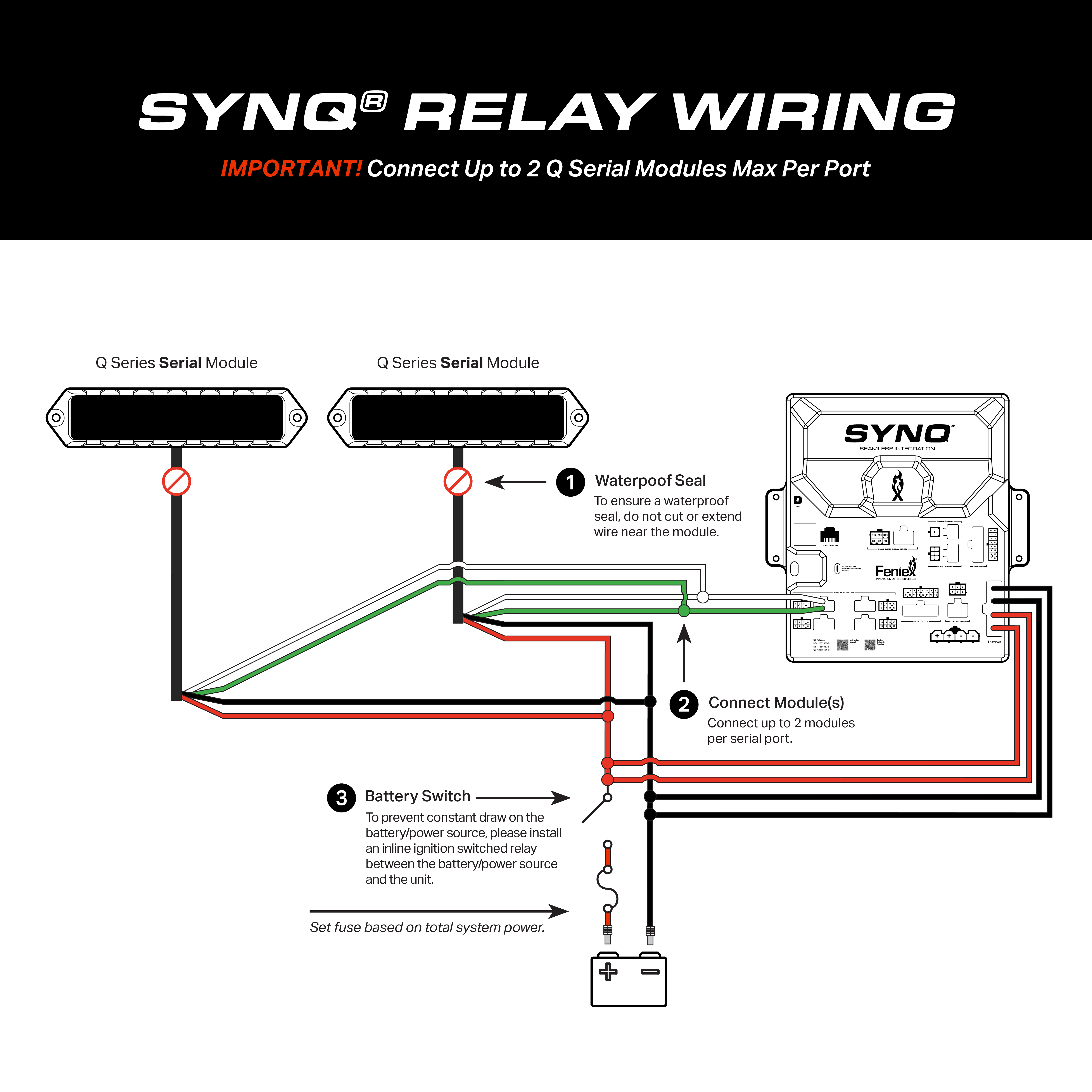

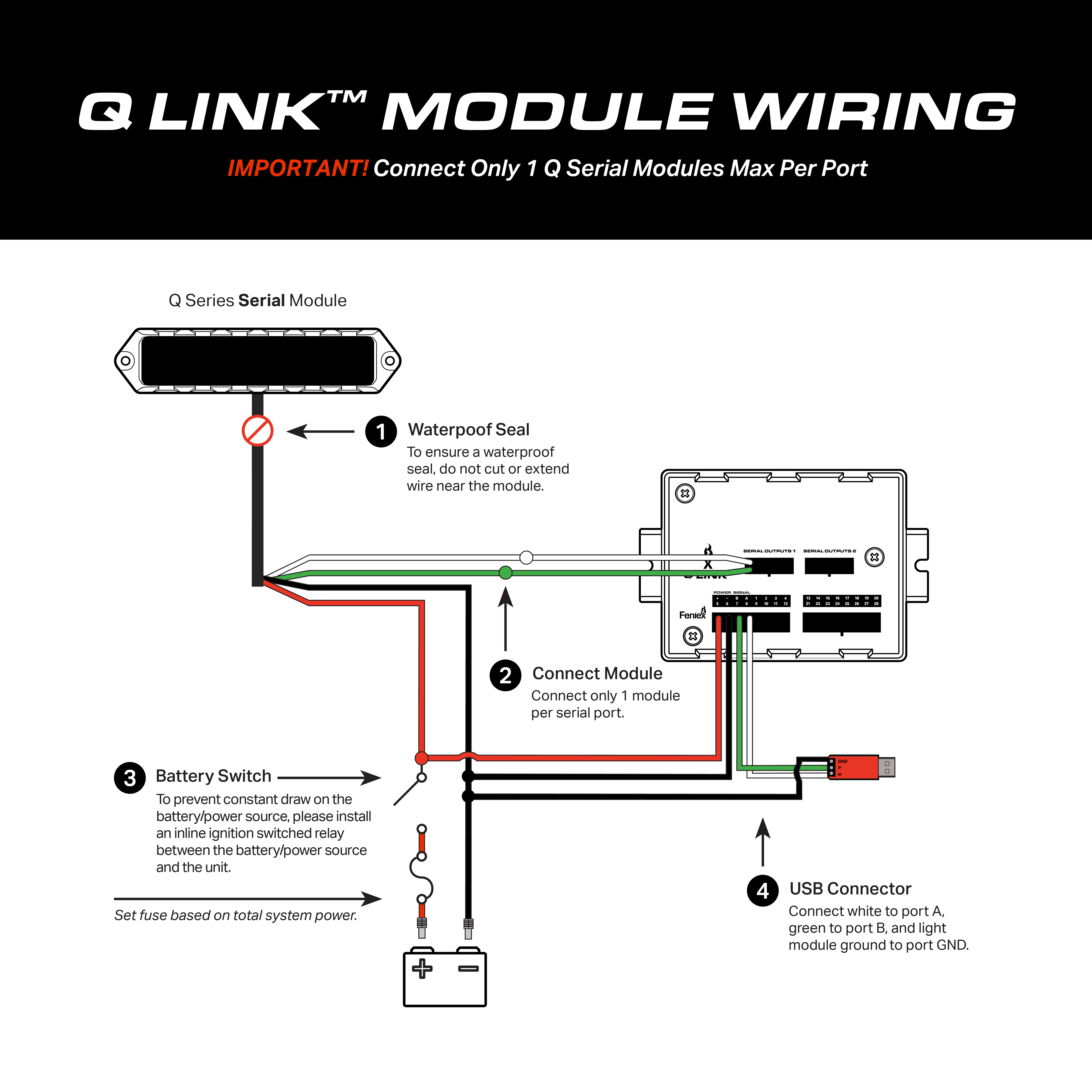

(Serial) Feniex Q® Serial lightheads are built with state-of-the-art serial technology that connects using 2 serial wires to the Q-Link device. You can sync up to 48 lightheads to the Q-Link device and program any function and color using our intuitive Q-Link Software.
Crafted to meet the rigorous demands of emergency responders, utility vehicles, and beyond, the Feniex Q® Series boasts exceptional brightness and clarity with 60-degree optics, ensuring your presence is unmistakably visible even in the most challenging conditions. With multiple color options at your fingertips, you can tailor your lighting configuration to suit your specific requirements, whether it's signaling urgency, directing traffic, or illuminating work zones with precision.
Specfications
- Current Draw: 1 Amp
- Cable Length: 1 Foot
- LED Count: 27 LEDs
- Input Voltage: 10-18VDC

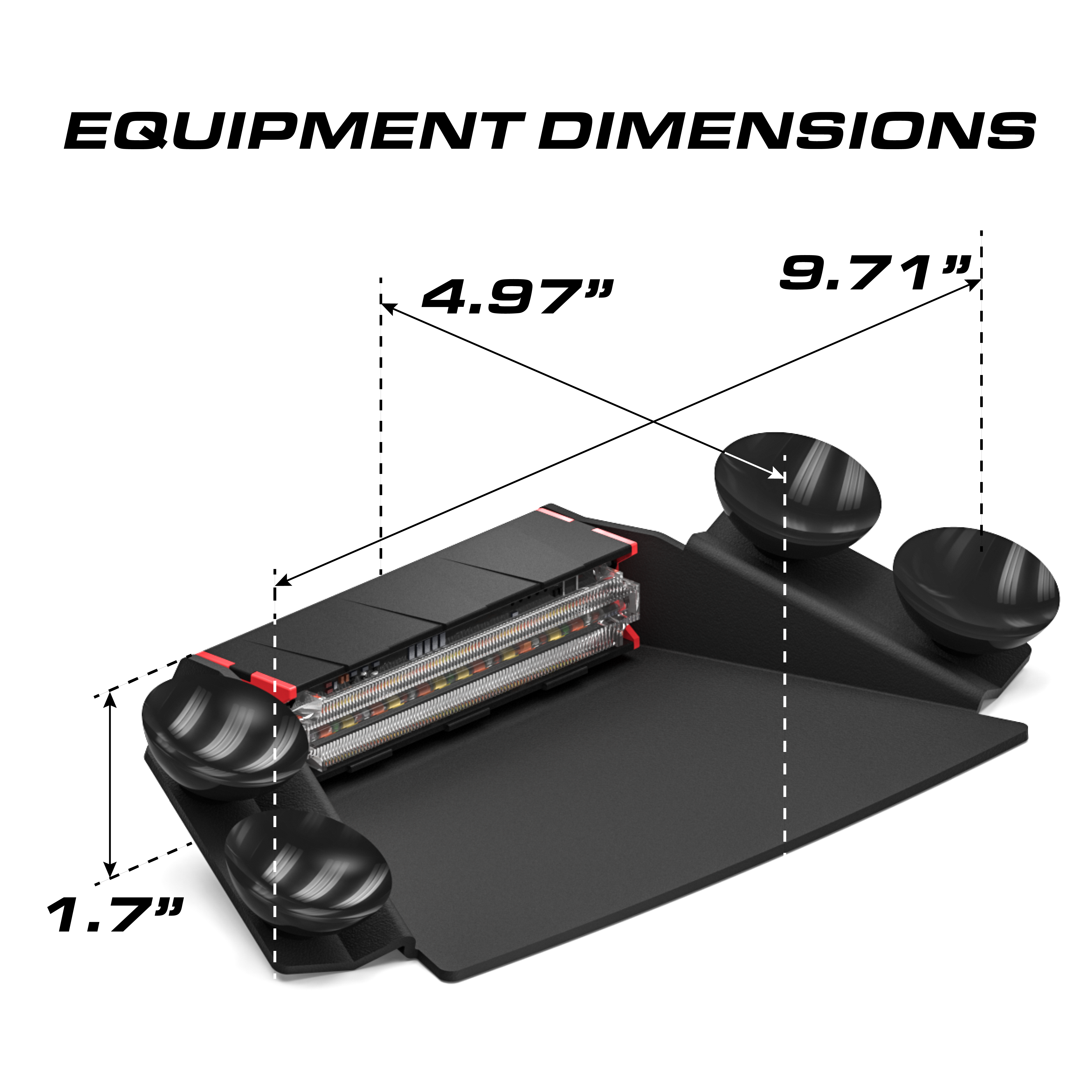

- Dim: 9.71” x 4.97” x 1.7”
- 5 Year Manufacturer Warranty
- Made in the USA: Austin, TX
Product Details
3-MODE FEATURES
- 3 User Programmable Modes
- 14 User Programmable Flash Patterns

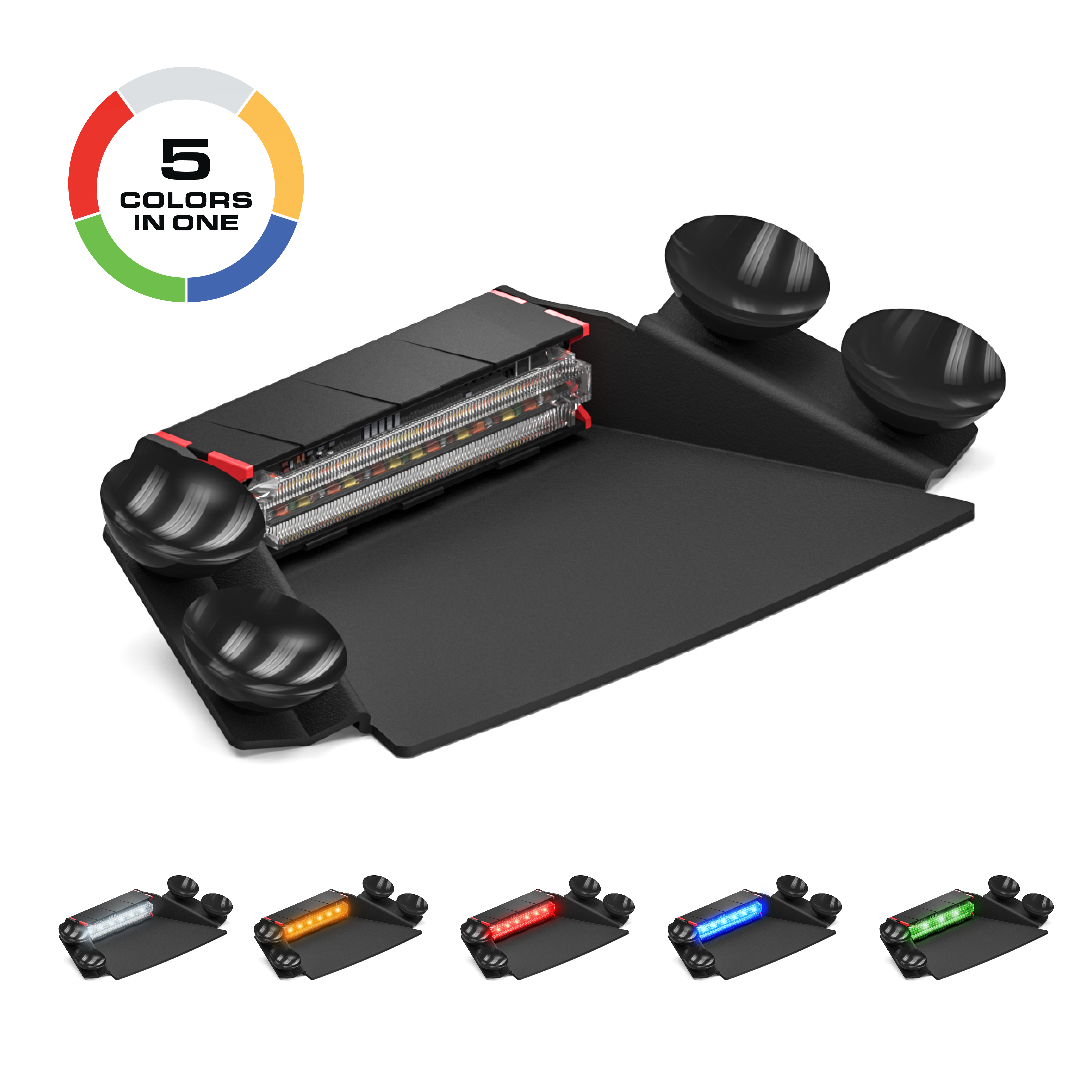

- Blue, Red, Amber, White and Green colors in each module

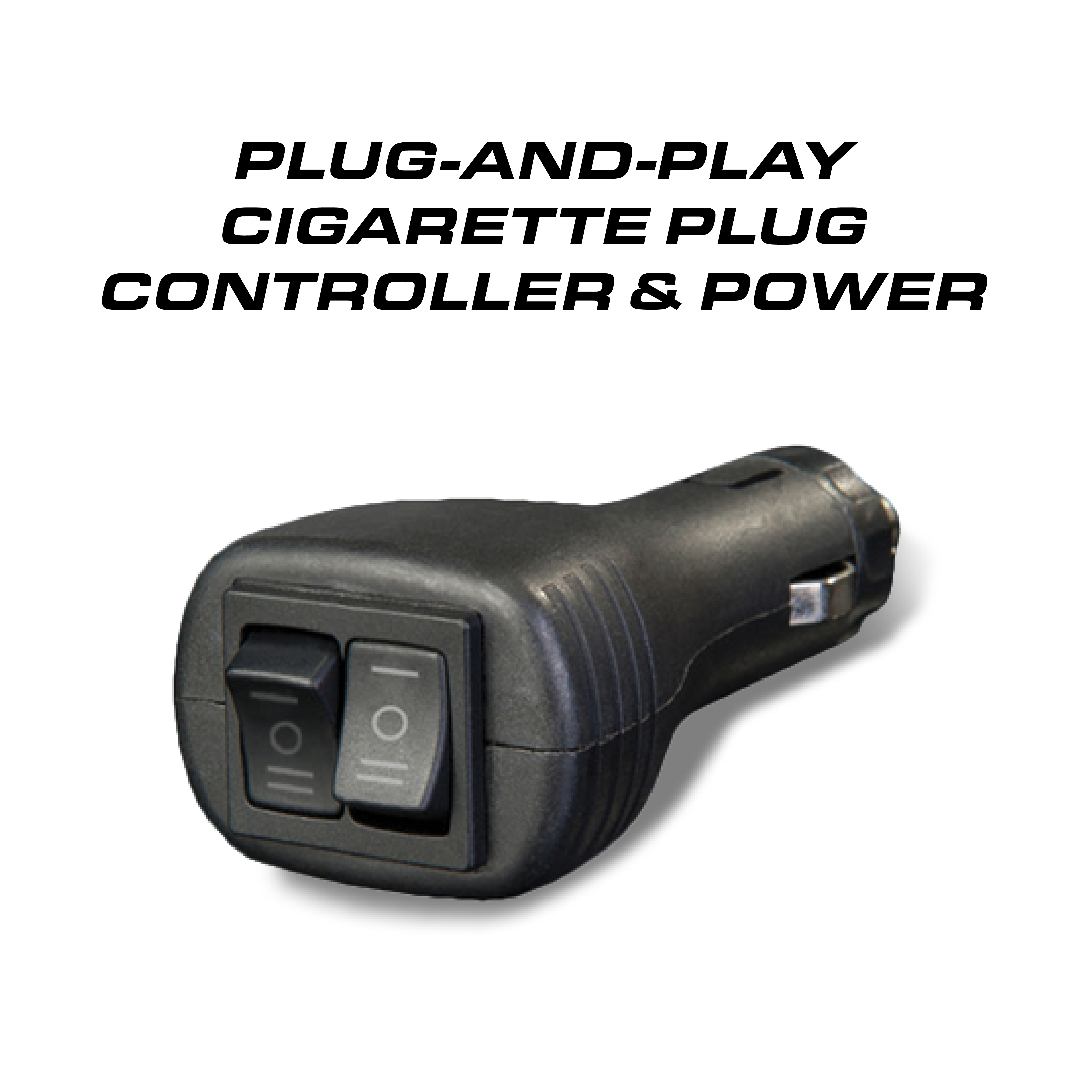

- Cigarette plug adapter with switches for color, pattern, and mode
- Hardwire installation syncs with all Quad, Lux and Q Series products
- Flood, Cruise, and Stop, Tail, Turn pattern capable
- Clear-coated polycarbonate lens prevents cracking & yellowing

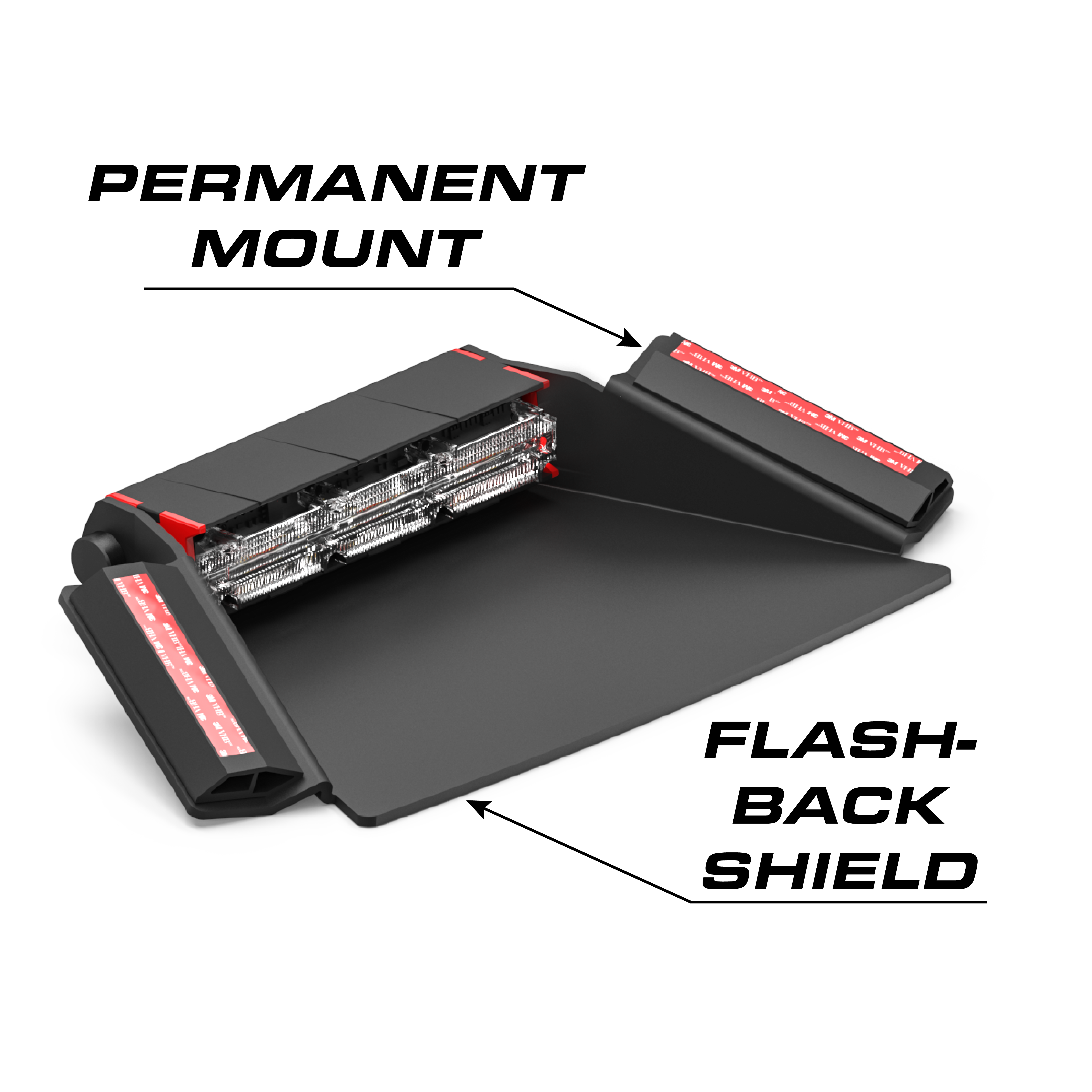

- Built-in shield to protect against flashback and glare

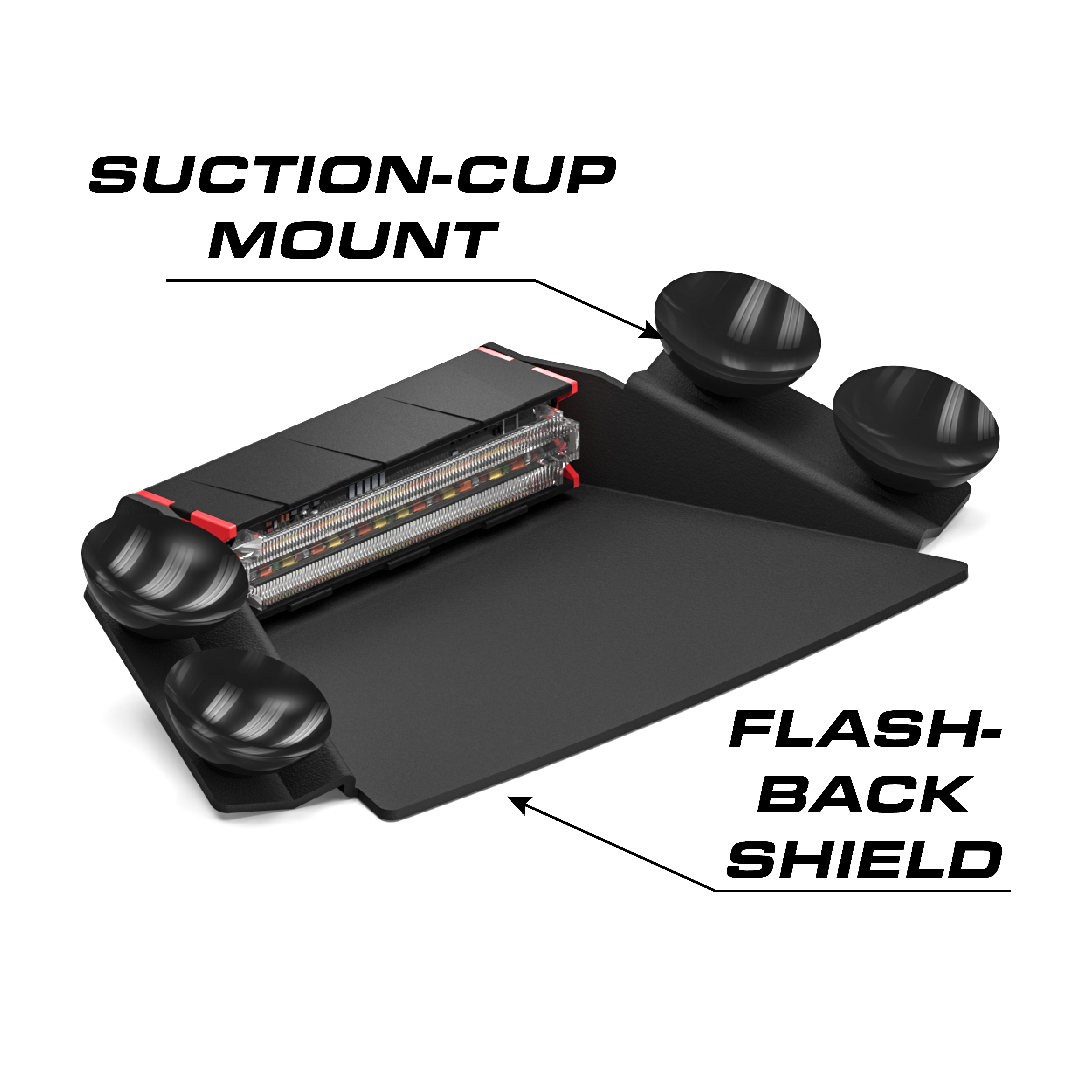

- 3M Permanent Mount and Suction Mount Kits included
- Color lock mode available during installation
- Waterproof & IP67 rated for protection against elements

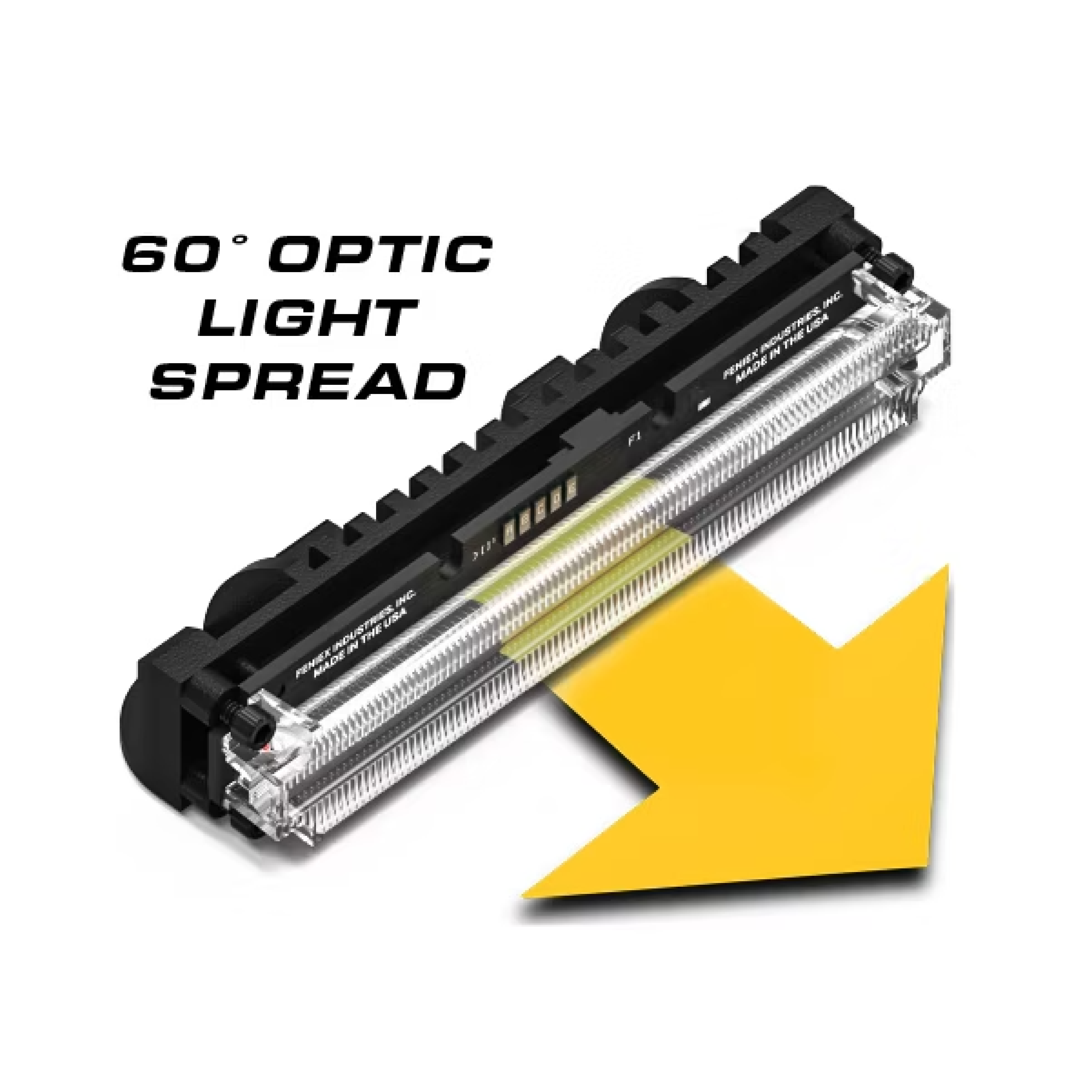

- 60-degree optical light spread for off-axis visibility
- SAE, CT13, KKK, NFPA, ECE R65 Class 1 Certified
SERIAL FEATURES
- Blue, Red, Amber, White, and Green colors in each module
- Syncs with up to 48 lightheads using one Q-Link device
- Comes with unlimited use of Feniex’s Q Link Software

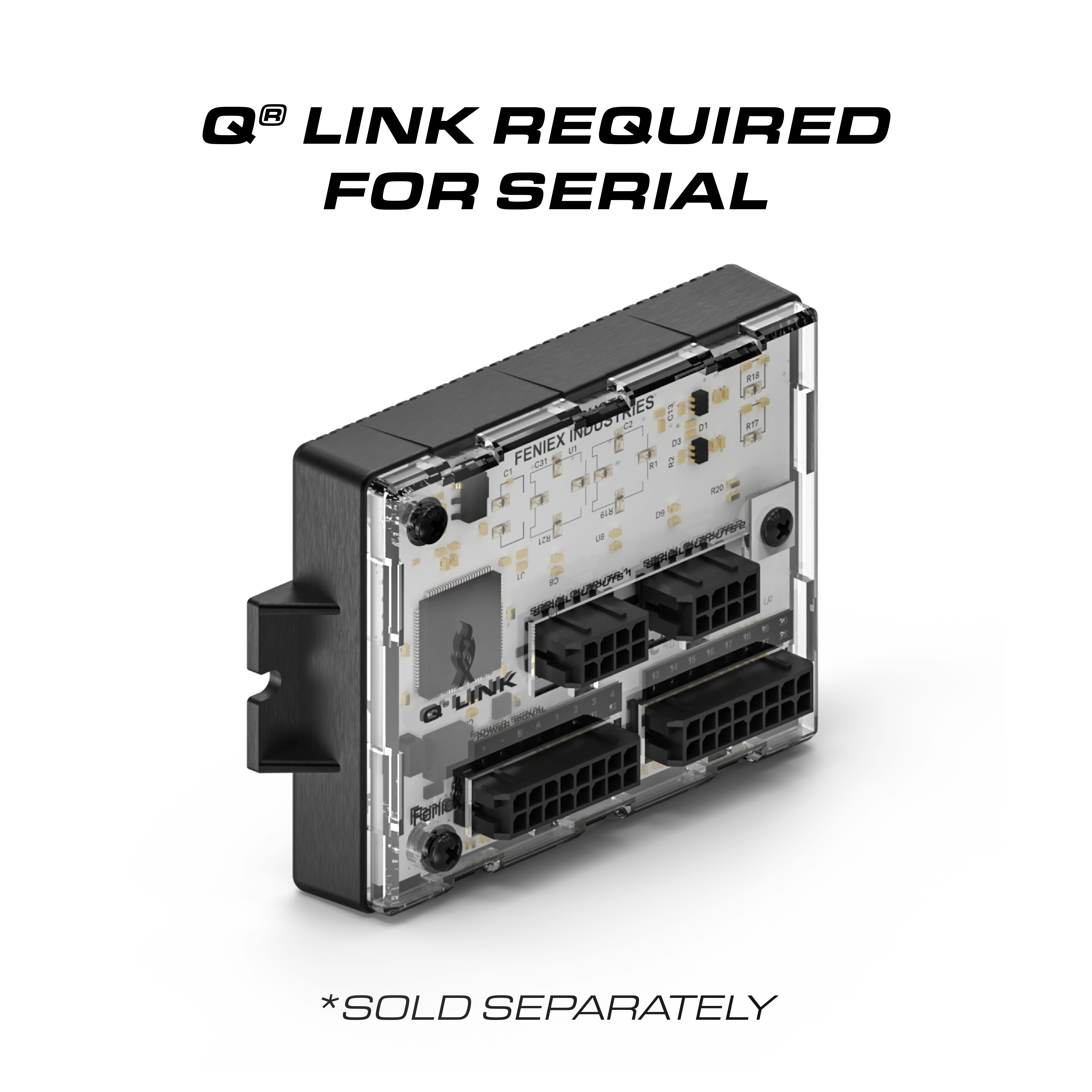

- 27 programmable inputs with Q-Link device (sold separately)
- Available functions include Flood, Cruise, and Stop Tail Turn and more
- Over 20 programmable flash patterns
- Built-in shield to protect against flashback and glare
- 3M Permanent Mount and Suction Mount Kits included
- 60-degree optical light spread for off-axis visibility
- Clear-coated polycarbonate lens prevents cracking & yellowing
- Waterproof & IP67 rated for protection against elements
- SAE, CT13, KKK, NFPA, ECE R65 Class 1 Certified
