Typhoon Full-Function
Price: $0.00
About the Product/Series

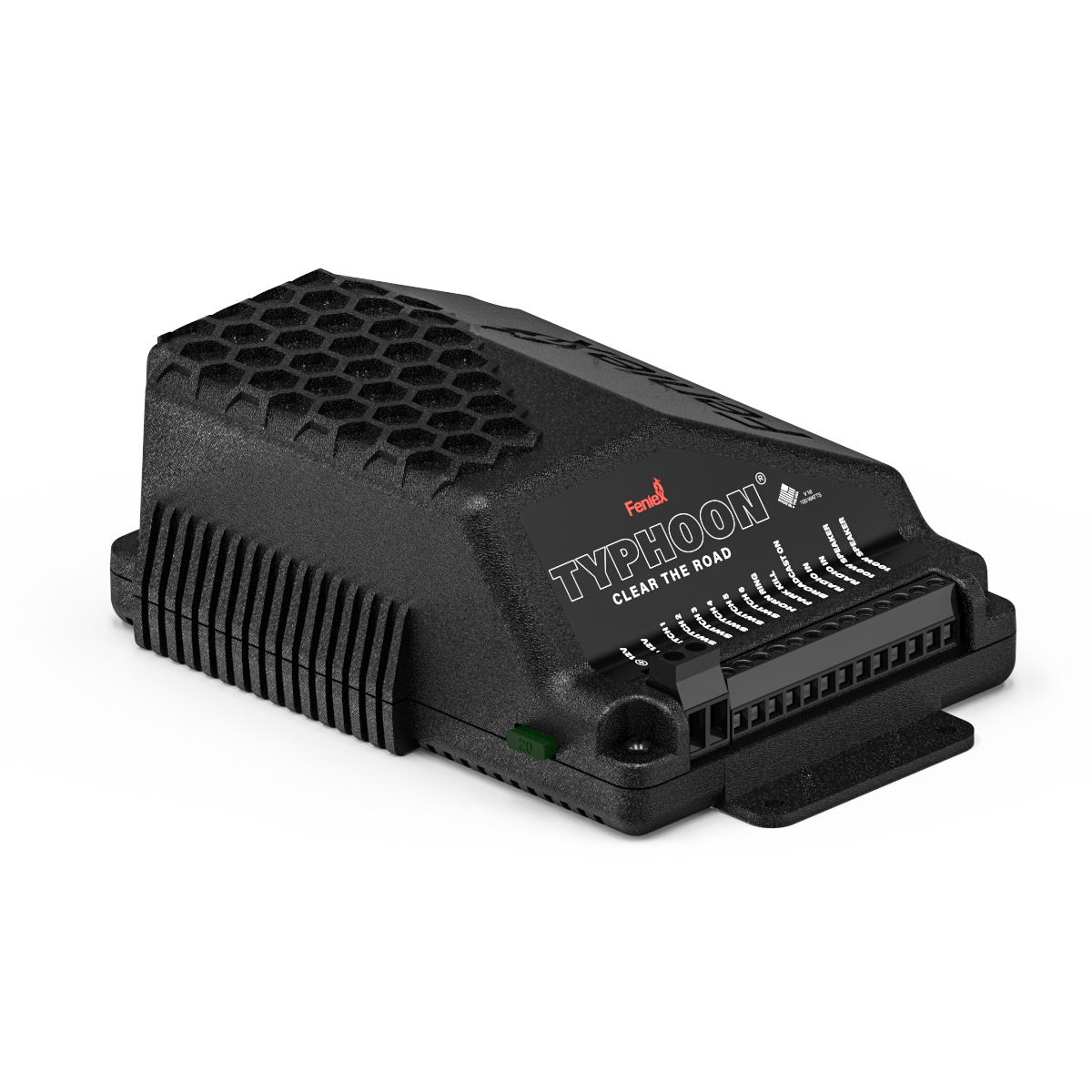

The Typhoon Full-Function Siren & Controller is an all-in-one, dash-mounted solution engineered for emergency response, law enforcement, fire, EMS, and specialty vehicles. Available in 100W or 200W models, it delivers clear, powerful sound with dependable performance in any environment. Its compact design integrates both siren and controller functions to save space while maximizing capability.
Designed for intuitive operation, the Typhoon Full-Function features six programmable backlit buttons, a built-in PA microphone, and a rotary dial for rapid tone selection. Whether activating lights, sirens, or auxiliary devices, users benefit from streamlined control and quick response times. Choose the 100W for standard applications or upgrade to the 200W for enhanced output—both options provide the same level of reliability and ease of use.
Specfications
- Typhoon 100W Full-Function
- Input Voltage: 12 VDC
- Max Current Draw: 20 A
- Siren Output: 100W

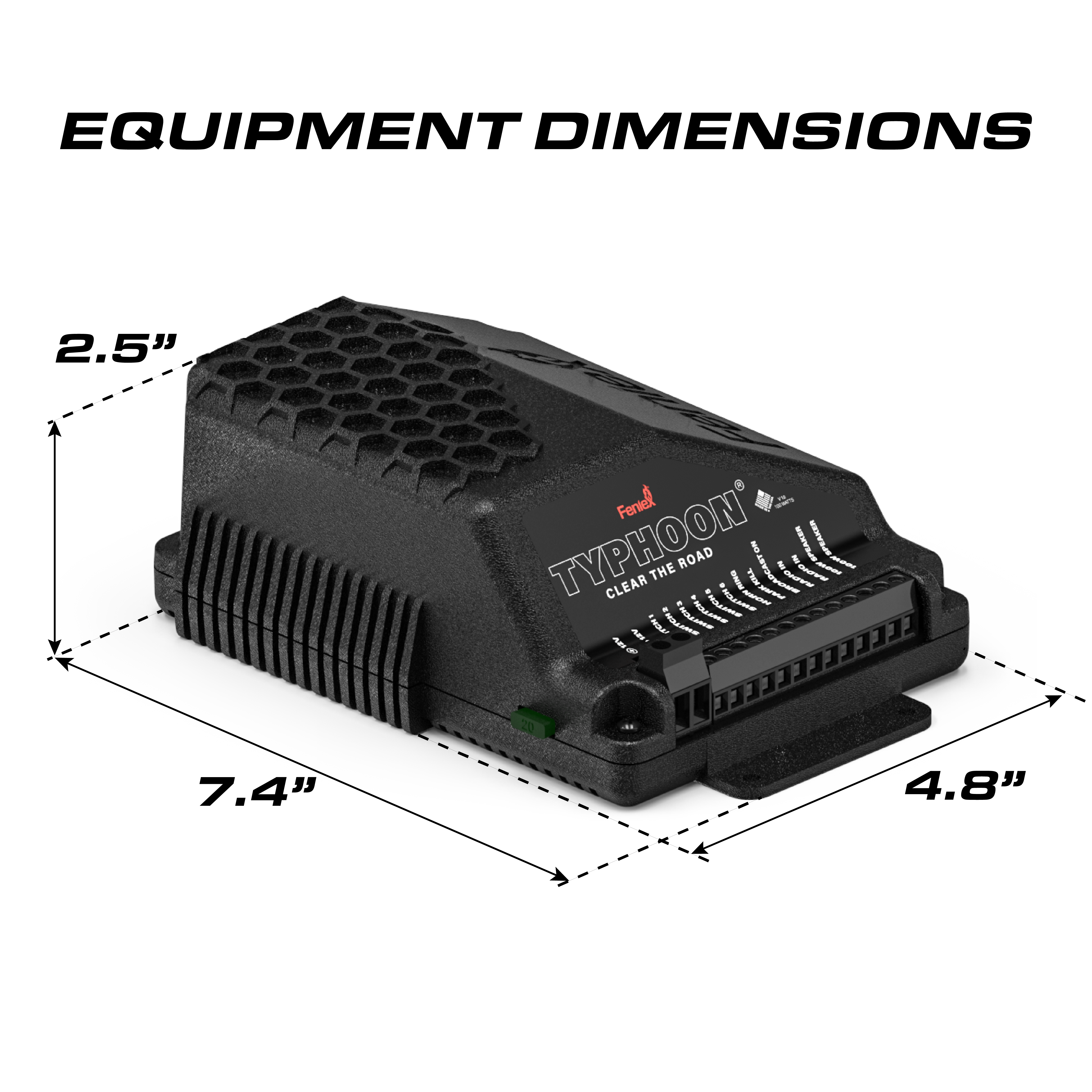

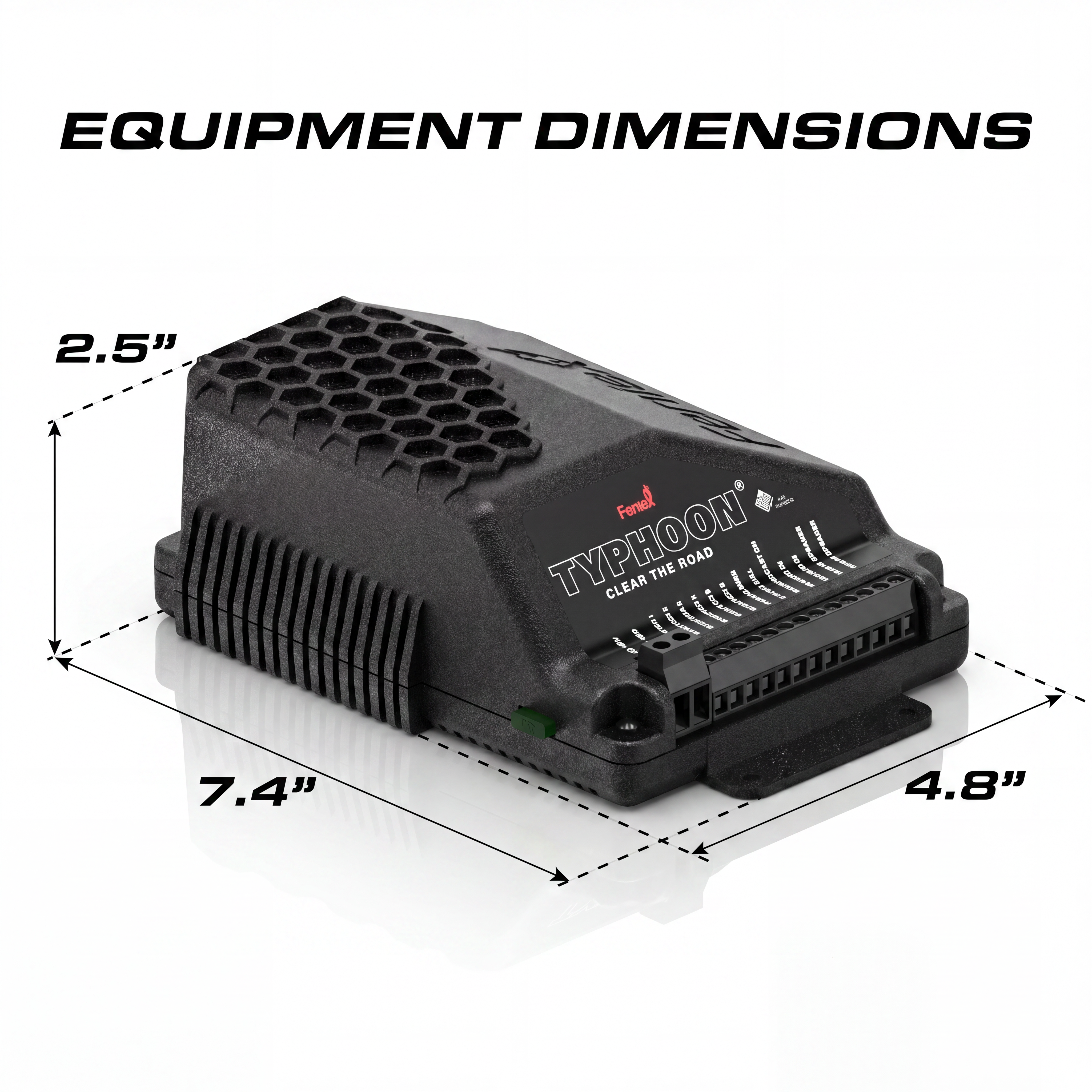

- Dimensions: Amplifier: 7.4” L x 4.8” x 2.5”

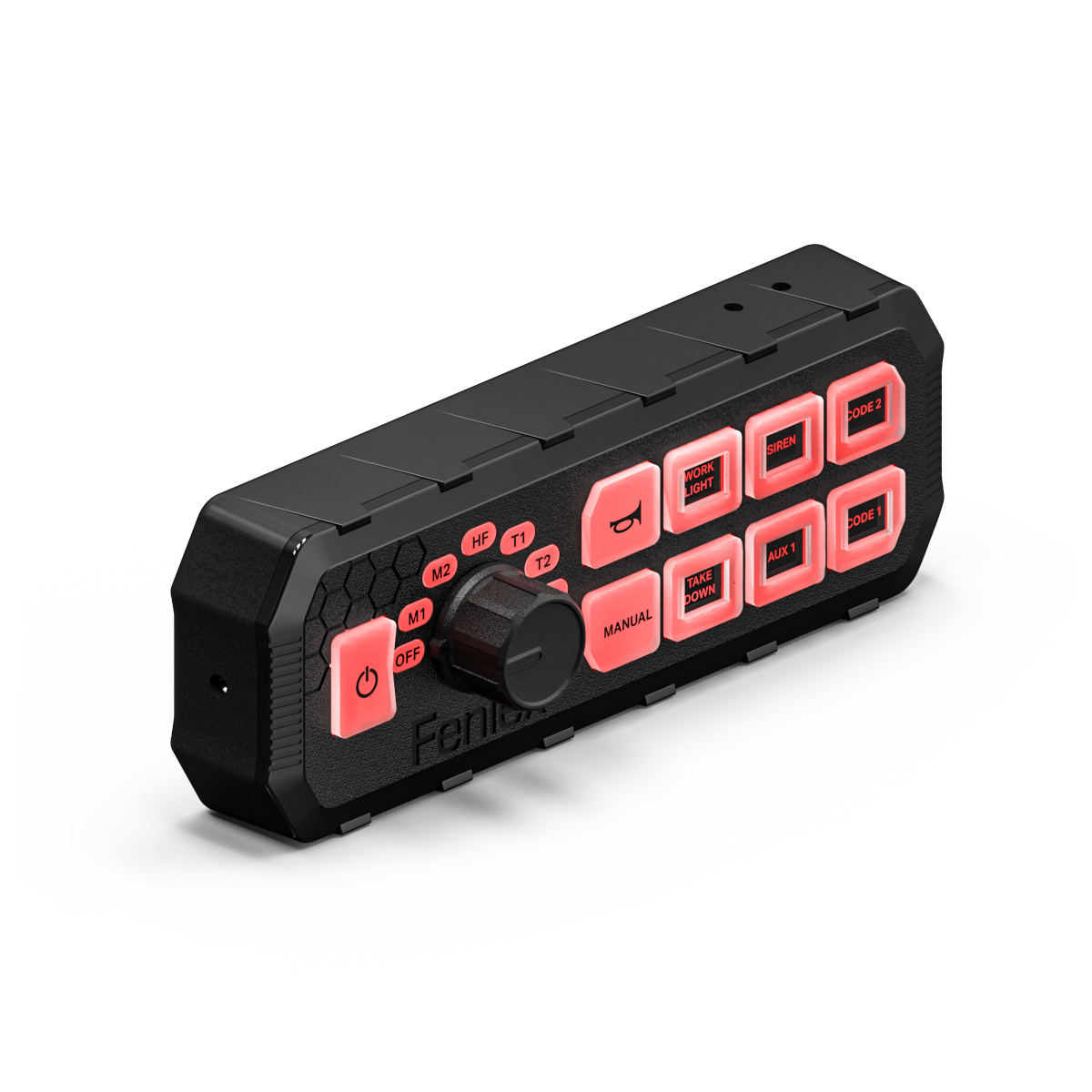

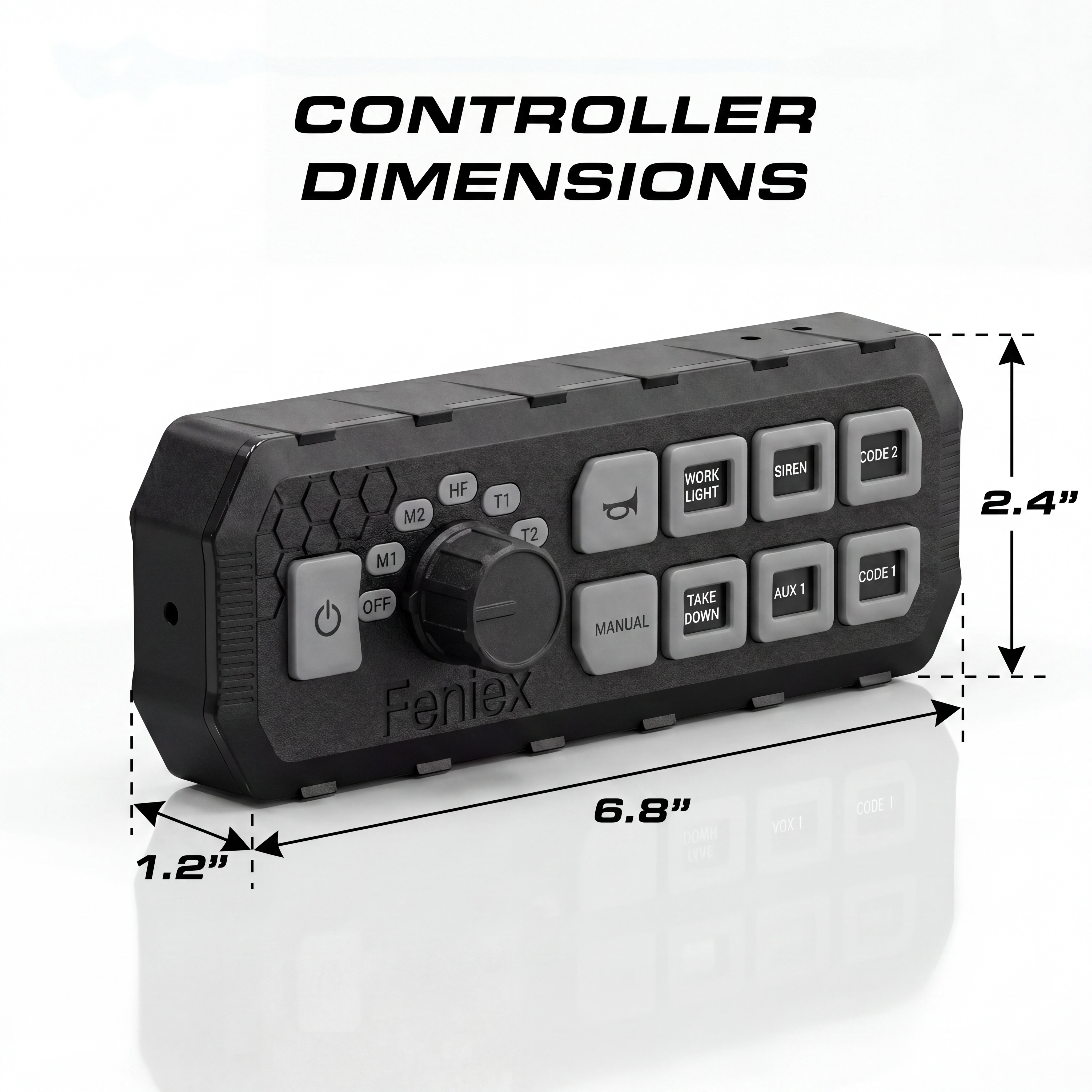

- Controller (Full Function): 6.8” x 2.4” x 1.2”
- Microphone Cable: 2 ft
- Typhoon 200W Full-Function
- Controller Dim: 6.8” x 2.4” x 1.2”

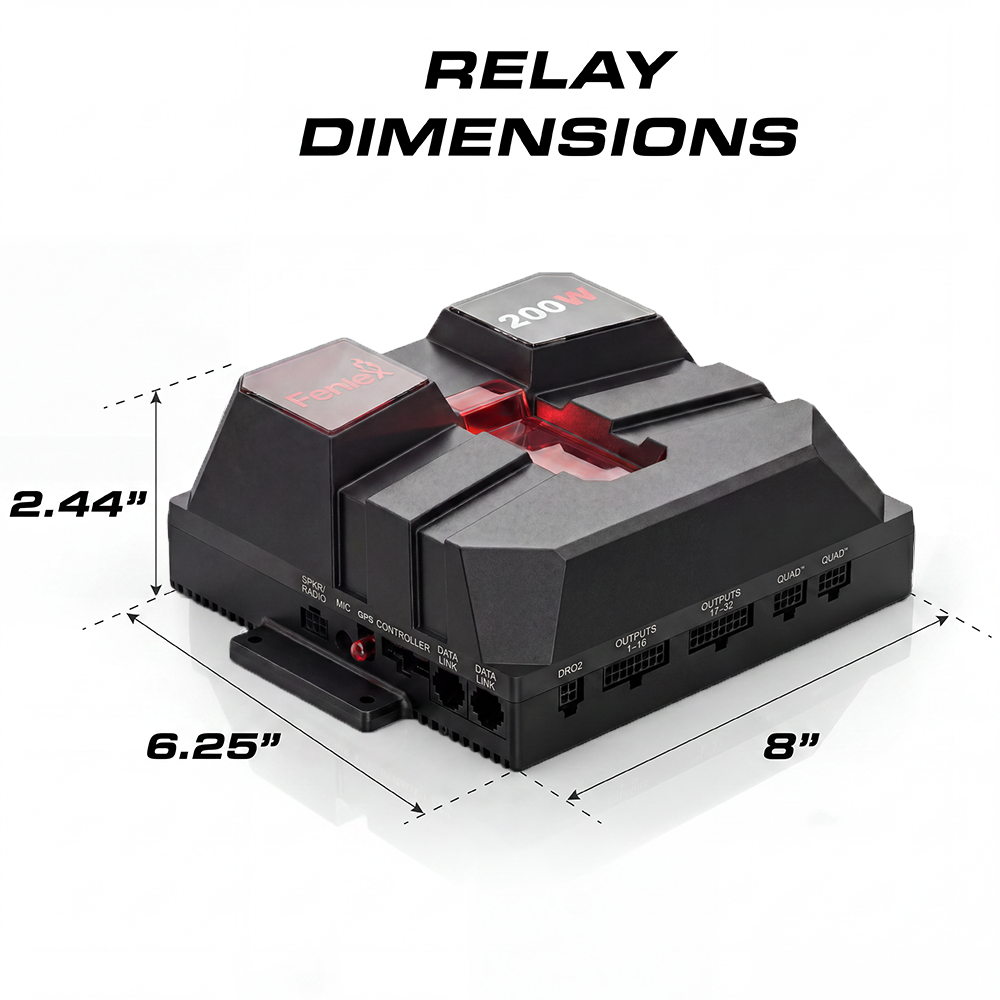

- Relay Dim: 8” x 6.25 x 2.44”
- Input Voltage: 11-16VDC
- Current Draw: 100mA
- Amps per Output: 125% Circuit Load
- 2 Year Manufacturer Warranty
Product Details
- Typhoon 100W Full-Function
- Six programmable light outputs via LED backlit buttons on controller
- Comes with three standard and three programmable siren tones via rotary dial on controller
- Siren output types: on/off and momentary
- Air horn, park kill, and radio rebroadcast capabilities
- Integrated headlight flasher
- Two year warranty
- Made in the USA
- Typhoon 200W Full-Function
- 36 programmable siren tones

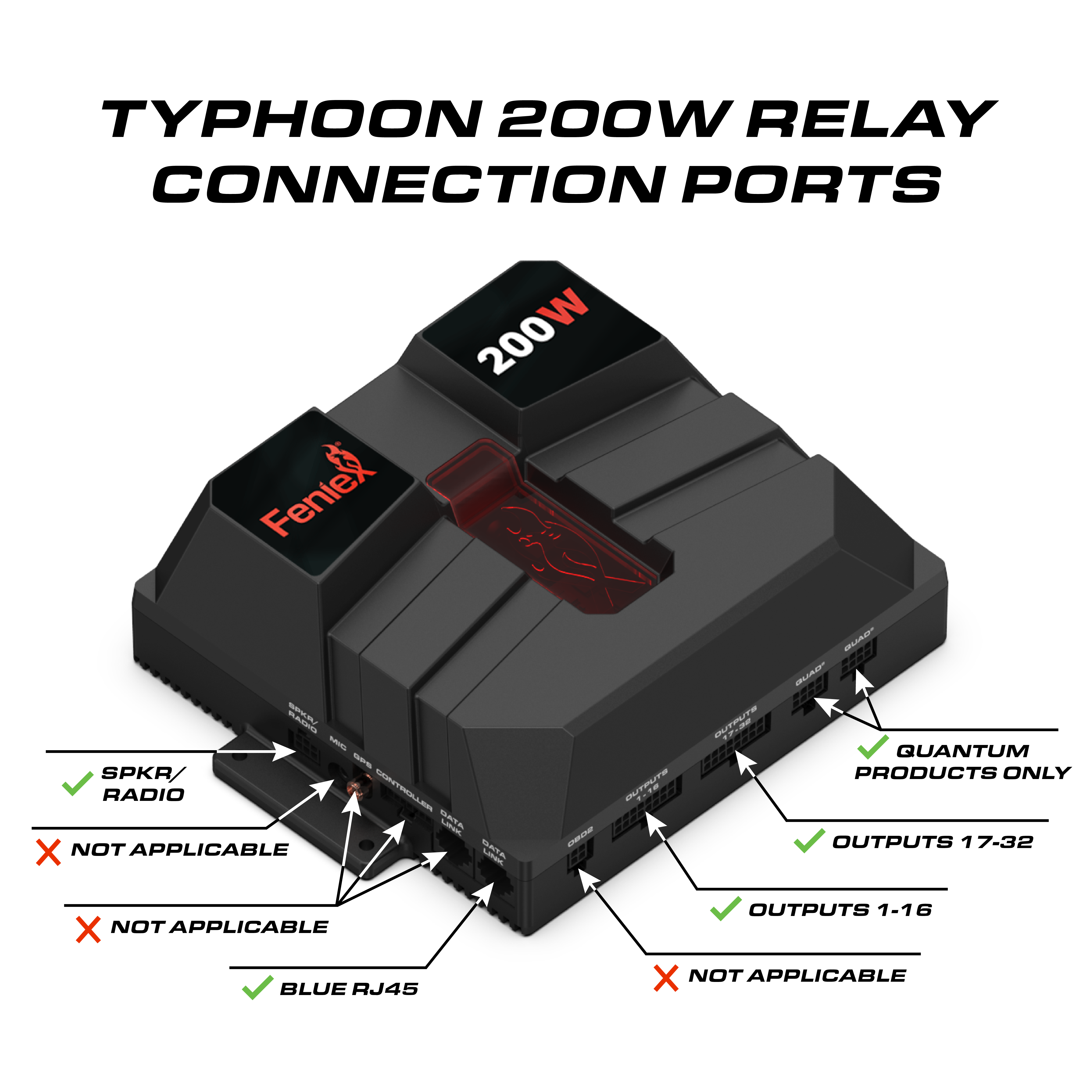

- 8 grouped outputs [3.5A per output]
- Auxiliary buttons programmable as on/off or momentary
- Integrated 2 output wigwag capability [for lights]
- Integrated microphone
- Air horn, park-kill, radio rebroadcast capabilities
- Rotary switch
- 12ft mic cable length
- PA mic volume control
- Backlit LED buttons

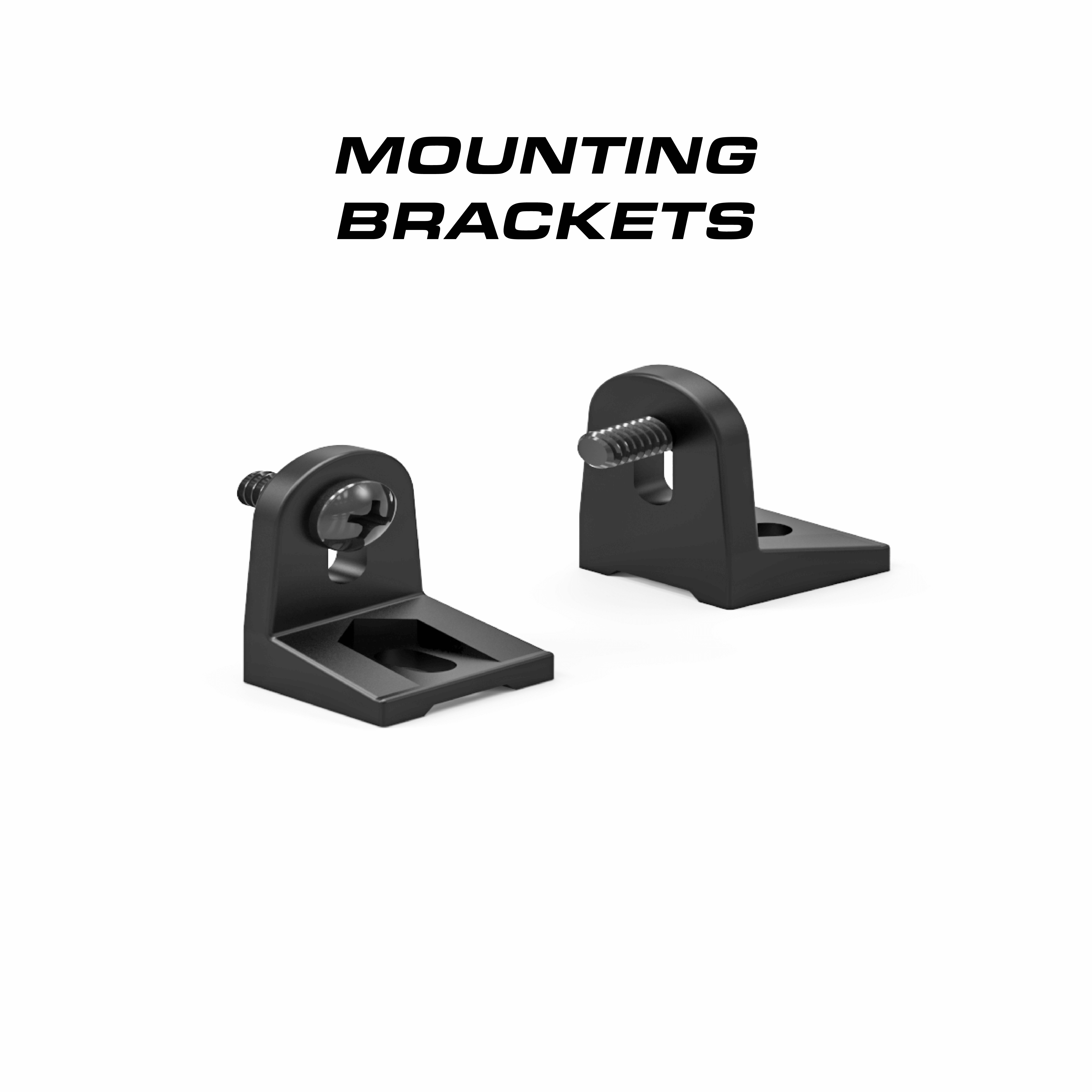

- Purchase includes Typhoon 200W siren, controller, dash mount bracket, & legend sheet
- Compatible with most emergency lights
Instruction Manuals & Documents
