The Feniex Q Link Module

manufacturing innovative american made products for the worlds toughest jobs

Q® Link

Price: $149.00

About the Product/Series

Introducing Feniex Q-Link, the innovative serial device to connect all of your Q Serial lightheads. Specially engineered for use with Feniex’s state-of-the-art serial technology, connect up to 48 Q Serial lightheads using only one Q-Link device. This device is not intended for 3-Mode Q Series products.

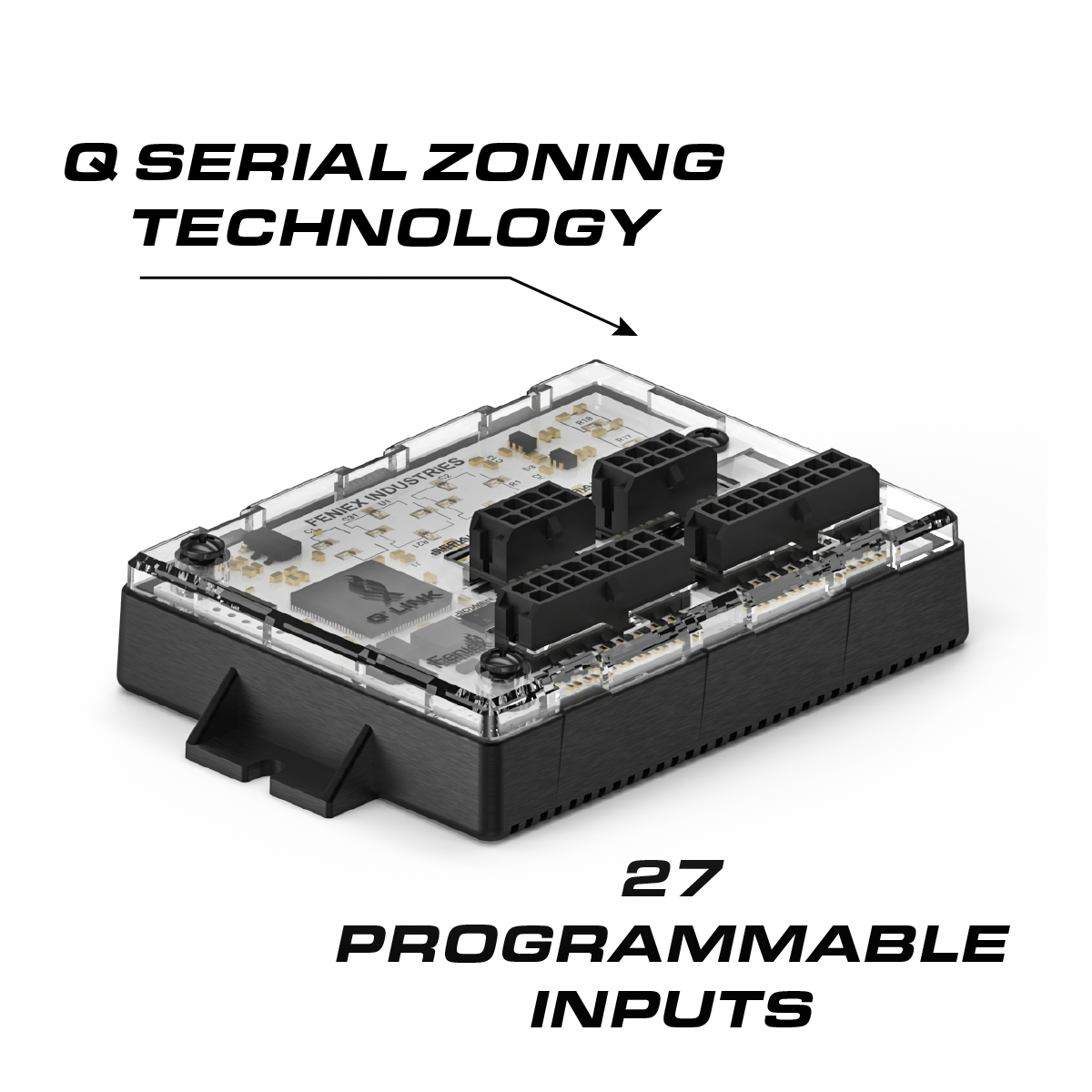

Our Q-Link device uses Q Serial Zoning Technology to make programming your build easier than ever before. No need to tap mode wires, simply connect your Q Serial lightheads to your Q-Link device using the 2 serial wires and the Q-Link Software. Then, set each Q Serial lighthead into your desired zones with a touch of the zoning magnet. Within moments, your zones are set and you can program any function and color using our intuitive Q-Link Software.

Download: Q-Link Software

Detailed walkthrough videos are available on Feniex University.

Specfications

  • Current Draw: 1 Amp
  • Cable Length: 1 Foot
  • LED Count: 27 LEDs
  • Input Voltage: 10-18VDC
  • Dim: 5.25" x 0.88" x 1.17"
  • 5 Year Manufacturer Warranty
  • Made in the USA: Austin, TX

Product Details

  • Zoning magnet included
  • 27 programmable inputs
  • Includes 8 serial ports
  • Each serial port supports up to 6 Q Serial lightheads
  • Syncs up to 48 lightheads using one Q Link device
  • Comes with unlimited use of Feniex’s Q Link Software
  • Over 20 programmable flash patterns
  • Available functions include Flood, Cruise, and Stop Tail Turn and more
  • SAE J1113-11 Certified
