4200-DL
Price: $449.00
About the Product/Series
The most powerful controller in the warning industry, the 4200 DataLink Controller is ideal for professional use and emergency vehicles. Universally compatible and fully programmable, the 4200 DL offers control over extensive lighting and siren system. Click to download the 4200 DL Software 2021 - Present Click to download the 4200 DL Software Pre 2018 Click to download the 4200 Non Data Link
Click to download the 4200 DL Software 2021 - Present
Click to download the 4200 DL Software Pre 2018
Click to download the 4200 Non Data Link
Specfications
- Input Voltage: 12 VDC
- Max Current Output: 60A

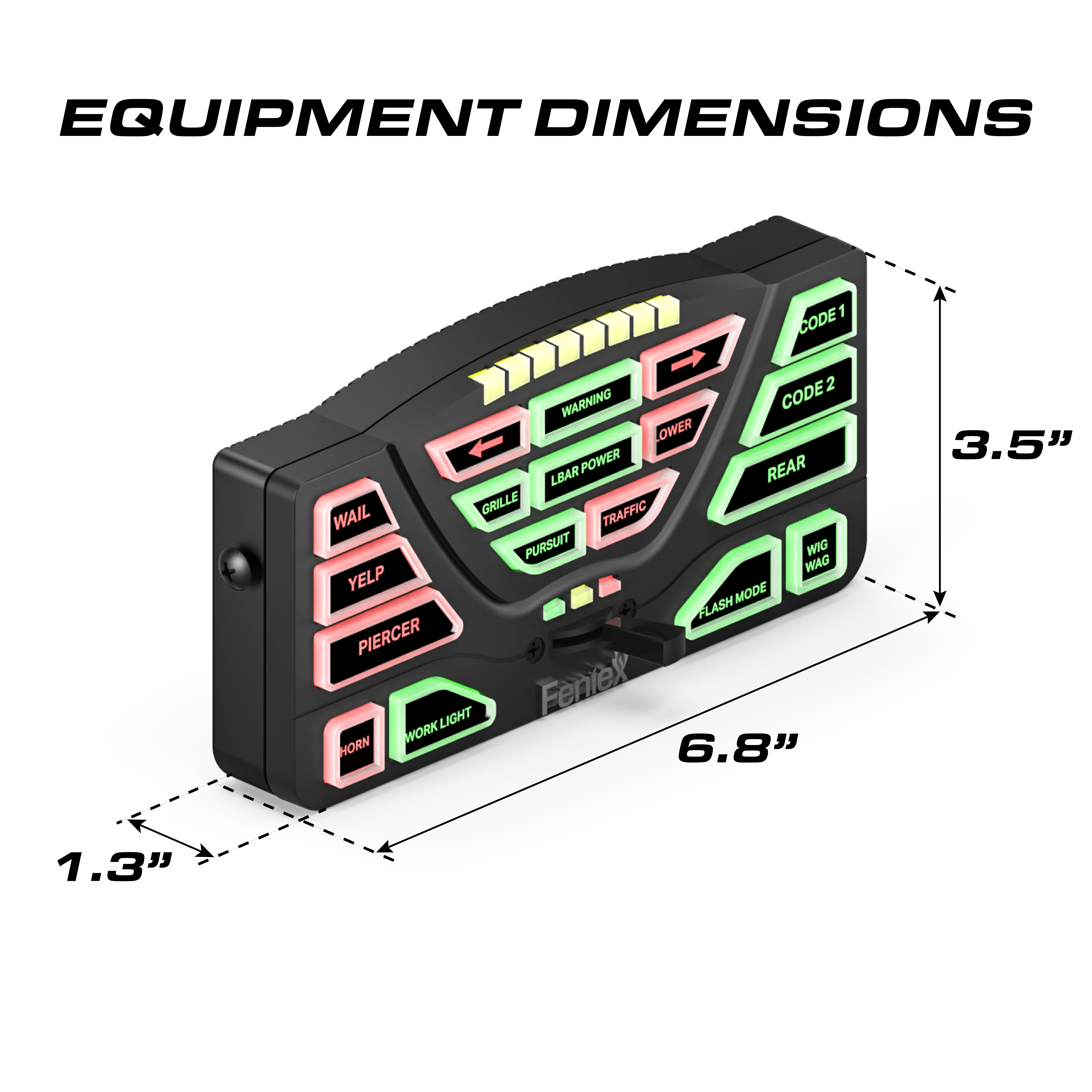

- Dimensions (Controller): 6.8” x 3.5” x 1.3”
- Dimensions (Relay): 6.3” x 3.3” x 1.5”
- Cable Length: 15 ft
- 2 year warranty
- Made in the USA
Product Details

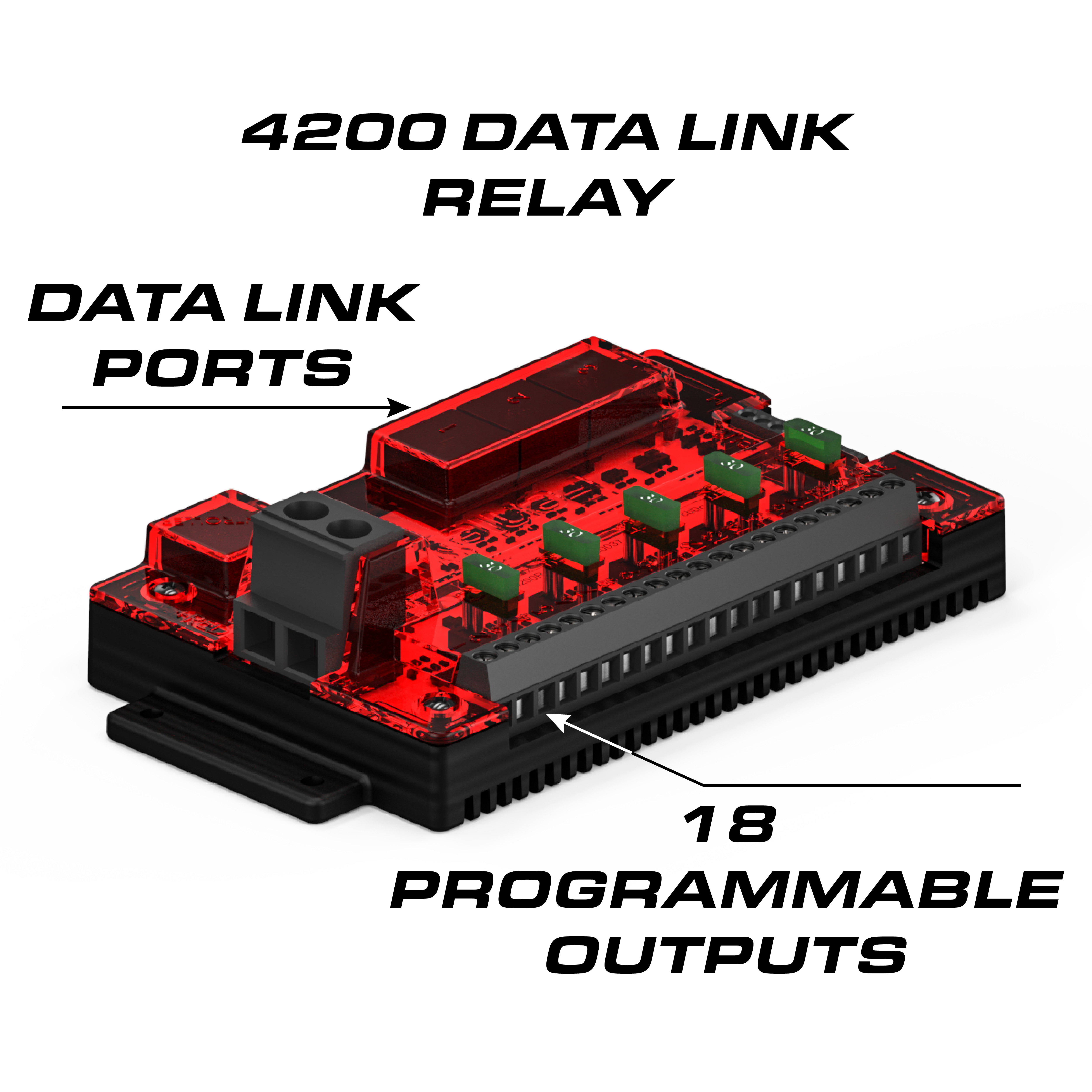

- 18 programmable 10A outputs
- 2 programmable 12V inputs
- Short circuit and overheating protection
- 3-position slide switch and 2-channel integrated wigwag
- Programmable day/night modes and ignition activation
- Output modes for on/off, momentary, and timer
- Optional face-plates: Havis, Jotto, Troy or Team Tech Offroad
Instruction Manuals & Documents
