Feniex 4200 DataLink Controller

manufacturing innovative american made products for the worlds toughest jobs

4200-DL

Price: $449.00

About the Product/Series

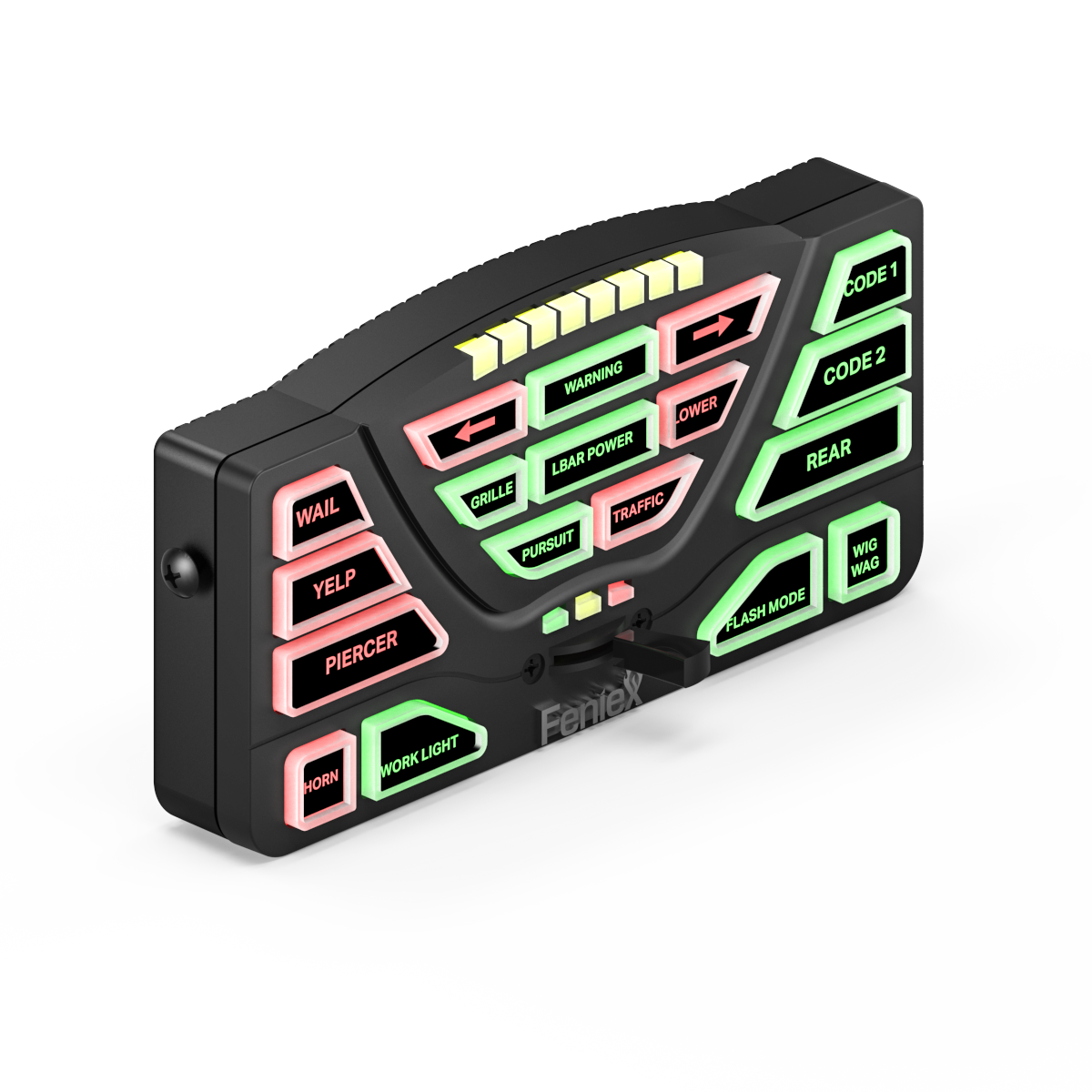

The most powerful controller in the warning industry, the 4200 DataLink Controller is ideal for professional use and emergency vehicles. Universally compatible and fully programmable, the 4200 DL offers control over extensive lighting and siren system. Click to download the 4200 DL Software 2021 - Present Click to download the 4200 DL Software Pre 2018 Click to download the 4200 Non Data Link


Click to download the 4200 DL Software 2021 - Present

Click to download the 4200 DL Software Pre 2018

Click to download the 4200 Non Data Link

Specfications

Input Voltage: 12 VDC Max Current Output: 60A Dimensions (Controller): 6.8” x 3.5” x 1.3” Dimensions (Relay): 6.3” x 3.3” x 1.5” Cable Length: 15 ft

Product Details

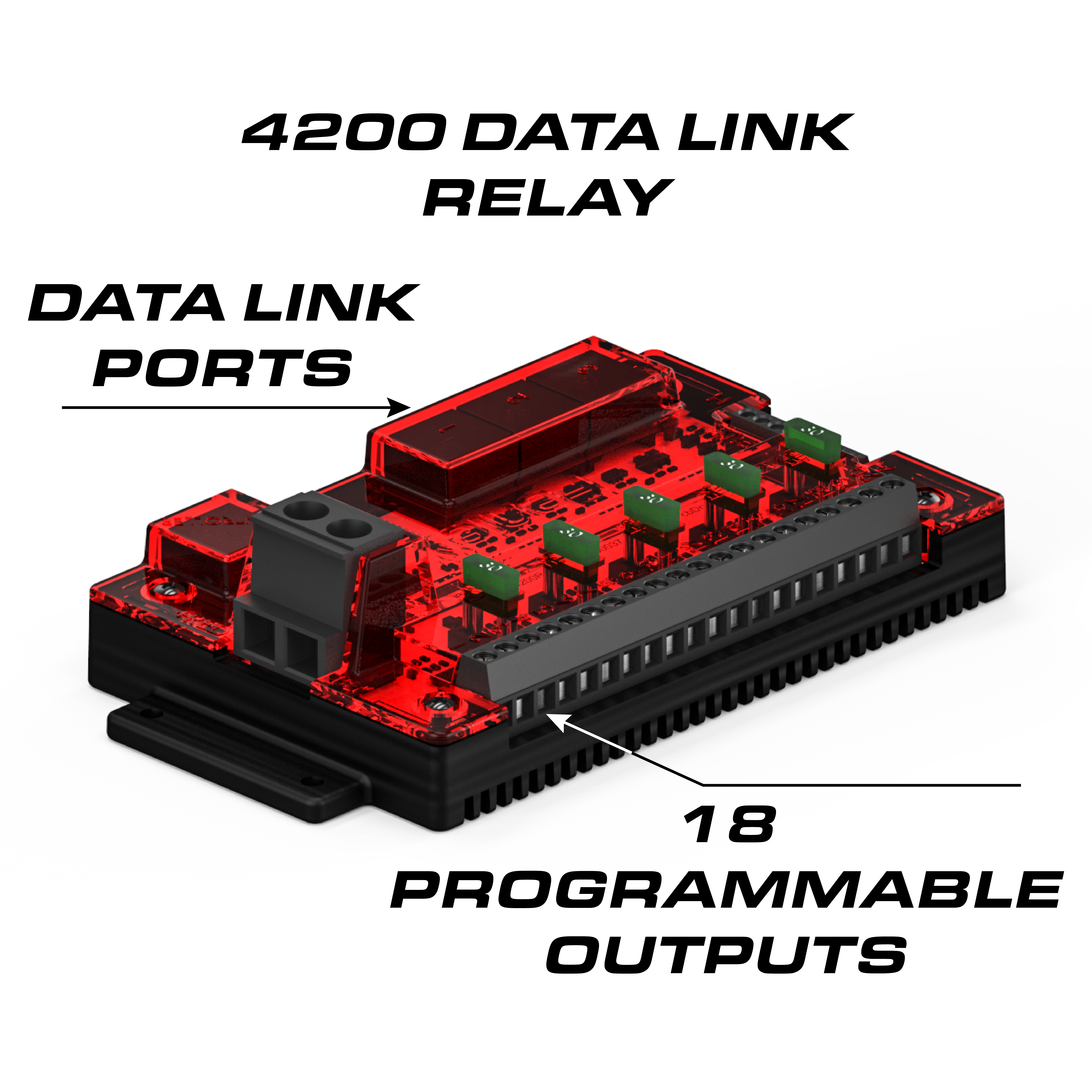

Eighteen programmable 10A outputs Two programmable 12V inputs Three-position slide switch and two-channel integrated wigwag Programmable day/night modes and ignition activation Output modes for on/off, momentary, and timer Optional face-plates: Havis, Jotto, Troy or Team Tech Offroad Short circuit and overheating protection Two year warranty Made in the USA

Instruction Manuals & Documents

Feniex University

Feniex University is our Educational Website that helps thousands of customers
out there....

Launch Feniex University

4200-DL

Price: $449.00

Quantity:

SKU: C-4200-DL
Add To Cart

Item has been added to cart!
